| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,044 pcs
|
26044 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Lead Spacing | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Voltage Supply |
The Intel EPM3064ATI44-10 is a high-performance, low-cost CMOS EEPROM-based programmable logic device (PLD) belonging to the MAX 3000A family. It offers 64 macrocells and 1250 usable gates, with a maximum propagation delay of 10 ns. This CPLD operates with a supply voltage range of 3V to 3.6V and is designed for in-system programmability.
Designed for industrial applications, the EPM3064ATI44-10 operates within a temperature range of -40°C to 85°C. It comes in a 44-TQFP package suitable for surface mounting. The device supports MultiVolt I/O, allowing compatibility with 5.0-V, 3.3-V, and 2.5-V logic levels, making it versatile for various system designs.
Key features include 34 user I/O pins and support for IEEE 1149.1 JTAG interface for in-system programming. The MAX 3000A architecture provides predictable performance and includes features like programmable slew-rate control and an open-drain output option.
The maximum propagation delay (tpd) for the EPM3064ATI44-10 is 10 ns.
The EPM3064ATI44-10 features 64 macrocells.
The operating voltage supply range for the EPM3064ATI44-10 is 3V to 3.6V.
The operating temperature range for the EPM3064ATI44-10 is -40°C to 85°C.

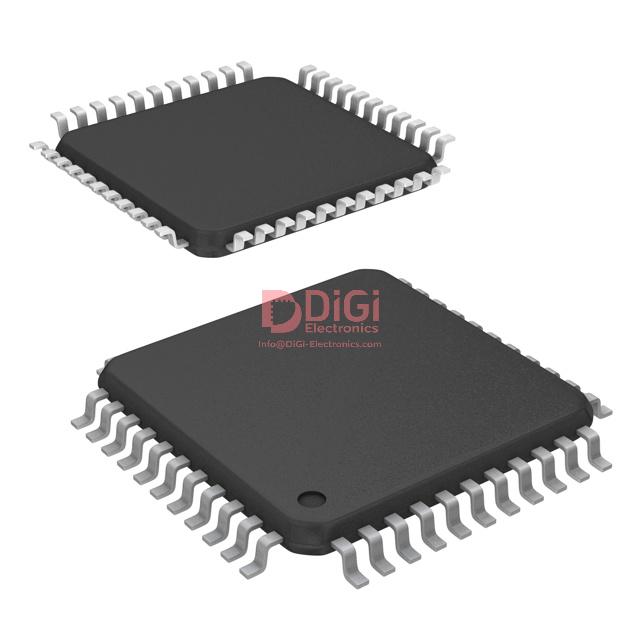

The EPM3064ATI44-10 is supplied in a 44-TQFP package.
The EPM3064ATI44-10 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the EPM3064ATI44-10 is 1 Unlimited.
