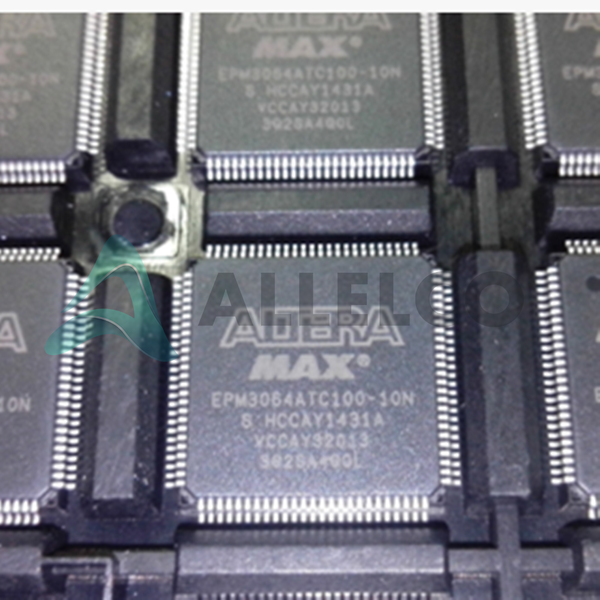

EPM3064ATC100-10N The Altera EPM3064ATC100-10N is a high-performance, low-cost CMOS EEPROM-based programmable logic device (PLD) from the MAX 3000A family. It offers a 4.5 ns pin-to-pin logic delay and operates with a 3.3V core voltage.
Mfr Part #:

EPM3064ATC100-10N

Available from 5 distributors
Mfr Name: Altera
Altera
The Altera EPM3064ATC100-10N is a high-performance, low-cost CMOS EEPROM-based programmable logic device (PLD) from the MAX 3000A family. It offers a 4.5 ns pin-to-pin logic delay and operates with a 3.3V core voltage.
✓ Total Stock: 54,049 pcs
$ Price Range: $0.50

EPM3064ATC100-10N Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM3064ATC100-10N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Voltage
Temperature Range
View Similar Products (0)

EPM3064ATC100-10N Description

Short technical summary and product information.

The Altera EPM3064ATC100-10N is a member of the MAX 3000A family of programmable logic devices (PLDs). Built on a MAX architecture, these CMOS EEPROM-based devices offer high performance and low cost.



Key electrical specifications include a pin-to-pin logic delay of 4.5 ns and a maximum counter frequency of up to 227.3 MHz. The device features a MultiVolt I/O interface, allowing the core to operate at 3.3V while I/O pins are compatible with 5.0V, 3.3V, and 2.5V logic levels. It supports an industrial temperature range of -40°C to +85°C.



This specific model, EPM3064ATC100-10N, contains 1,250 usable gates and 64 macrocells, with 4 logic array blocks and a maximum of 66 user I/O pins. It is programmed using 3.3V in-system programmability (ISP) via an IEEE Std. 1149.1 JTAG interface.



The device is available in a 100-pin Thin Quad Flat Pack (TQFP) package, suitable for surface mounting. It also includes features like boundary-scan test circuitry compliant with IEEE Std. 1149.1-1990 and hot-socketing support.

EPM3064ATC100-10N Quick Information

Product Type: PLD (Programmable Logic Device)
Canonical Name: Altera MAX 3000A Family Programmable Logic Device
Subcategory: Complex Programmable Logic Device

EPM3064ATC100-10N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM3064ATC100-10N Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM3064ATC100-10N Features

  • High-performance, low-cost CMOS EEPROM-based PLD.
  • 4.5 ns pin-to-pin logic delays.
  • 3.3V core voltage with multi-voltage I/O.
  • Industrial temperature range (-40°C to +85°C).
  • 100-pin Thin Quad Flat Pack (TQFP) package.

EPM3064ATC100-10N Applications

  • Ideal for high-speed logic designs.
  • Suitable for embedded system applications.
  • Supports in-system programmability.
  • Designed for predictable performance.

EPM3064ATC100-10N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the EPM3064ATC100-10N?

The device core operates at 3.3V, and its I/O pins are compatible with 5.0V, 3.3V, and 2.5V logic levels.

What is the package type for the EPM3064ATC100-10N?

The EPM3064ATC100-10N is supplied in a 100-TQFP package and is surface mountable.

What is the operating temperature range for this PLD?

This device is designed for an industrial temperature range, operating from -40°C to +85°C.

What is the RoHS status of the EPM3064ATC100-10N?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the EPM3064ATC100-10N?

The Moisture Sensitivity Level is 1 Unlimited.

What is the REACH status for this component?

The REACH status is REACH Unaffected.
