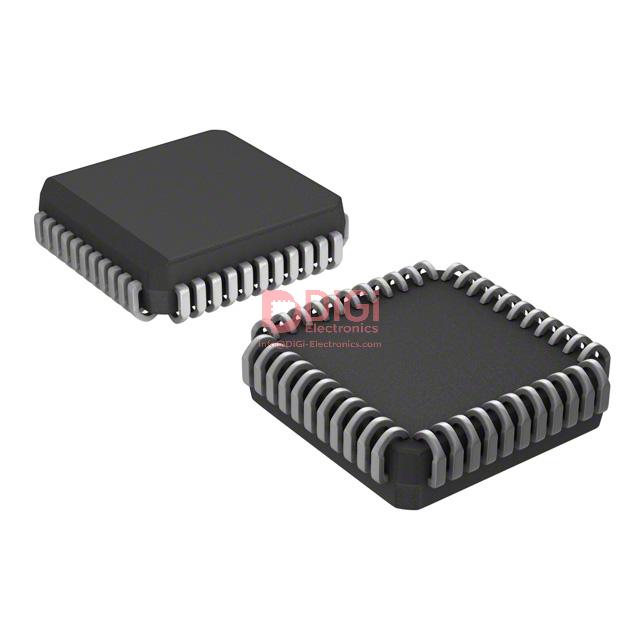

EPM3064ALC44-7 The Altera EPM3064ALC44-7 is a Complex Programmable Logic Device (CPLD) from the MAX 3000A series. It offers 64 macrocells and a pin-to-pin delay of 7.5 ns.
Mfr Part #:

EPM3064ALC44-7

Available from 1 distributors
Mfr Name: Altera
Altera
The Altera EPM3064ALC44-7 is a Complex Programmable Logic Device (CPLD) from the MAX 3000A series. It offers 64 macrocells and a pin-to-pin delay of 7.5 ns.
✓ Total Stock: 17 pcs
$ Price Range: $0.50

EPM3064ALC44-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM3064ALC44-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Storage Temperature
Supplier Package
Supply Voltage
Tape & Reel
View Similar Products (0)

EPM3064ALC44-7 Description

Short technical summary and product information.

The Altera EPM3064ALC44-7 is a high-performance, low-cost CMOS EEPROM-based programmable logic device (PLD) belonging to the MAX 3000A family. This CPLD features 64 macrocells and 1250 usable gates, providing ample logic capacity for various embedded applications.



Key electrical specifications include a maximum pin-to-pin delay of 7.5 ns and an internal supply voltage range of 3V to 3.6V. The device operates within an industrial temperature range of 0°C to 70°C.



Designed for in-system programmability (ISP) via an IEEE 1149.1 JTAG interface, the EPM3064ALC44-7 supports advanced pin-locking capabilities. It is housed in a 44-PLCC package and is suitable for surface mount applications.



This CPLD is built on a MAX architecture, offering predictable performance with its programmable interconnect array (PIA). It also supports MultiVolt I/O, allowing compatibility with 5.0-V, 3.3-V, and 2.5-V logic levels.

EPM3064ALC44-7 Quick Information

Product Type: CPLD
Series: MAX® 3000A
Canonical Name: Altera EPM3064ALC44-7 Complex Programmable Logic Device
Subcategory: Complex Programmable Logic Devices

EPM3064ALC44-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM3064ALC44-7 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM3064ALC44-7 Features

  • 64 macrocells and 1250 gates.
  • 7.5 ns maximum pin-to-pin delay.
  • 3.3V internal supply voltage.
  • 0°C to 70°C operating temperature range.
  • 44-PLCC surface mount package.

EPM3064ALC44-7 Applications

  • Ideal for logic implementation.
  • Suitable for embedded systems.
  • Used in programmable logic designs.
  • Supports in-system programming.

EPM3064ALC44-7 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the EPM3064ALC44-7?

The operating temperature range is 0°C to 70°C.

What is the maximum pin-to-pin delay of the EPM3064ALC44-7?

The maximum pin-to-pin delay is 7.5 ns.

What is the internal supply voltage for this CPLD?

The internal supply voltage is 3V to 3.6V.

How many macrocells does the EPM3064ALC44-7 have?

It has 64 macrocells.

What package type is the EPM3064ALC44-7 supplied in?

It is supplied in a 44-PLCC package.
