Mfr Part #:

EPM240T100C3N

Mfr Name: Altera

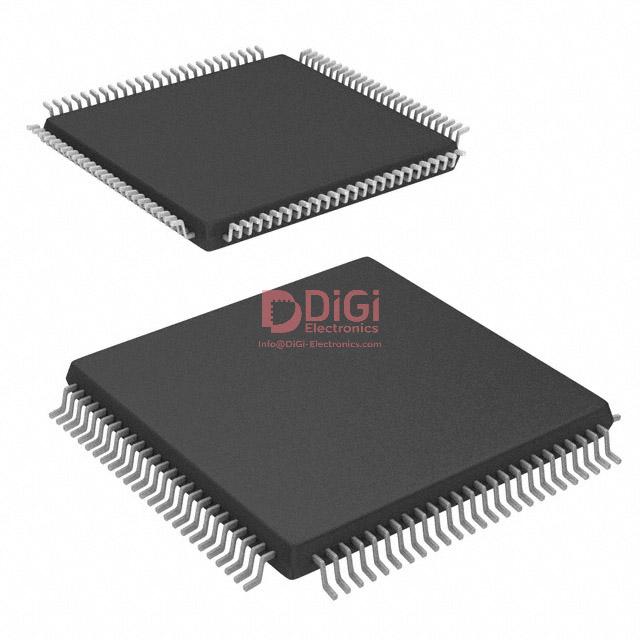

The Altera EPM240T100C3N is a MAX II series CPLD with 240 logic elements and 192 macrocells. It operates within a commercial temperature range.

✓ Total Stock: 3,367 pcs

$ Price Range: $0.50

EPM240T100C3N Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	3,220 pcs On Request	3220 pcs	On Request	1	On Request	On Request	15+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	122 pcs On Request	122 pcs	On Request	1	On Request	On Request	0725+	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	25 pcs On Request	25 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

EPM240T100C3N Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Altera
Delay Time	4.7 ns
Mounting Type	Surface Mount
Operating Temperature	0°C
Supplier Device Package	100-TQFP (14x14)
Voltage	2.5 V

View Similar Products (0)

EPM240T100C3N Description

Short technical summary and product information.

The Altera EPM240T100C3N is a Complex Programmable Logic Device (CPLD) from the MAX II series. This device features 240 logic elements and 192 macrocells, offering significant logic density for embedded applications. It provides 80 I/O pins for interfacing with other components.

The CPLD has a maximum propagation delay of 4.7 ns, ensuring fast signal processing. It supports internal supply voltages of 2.5V and 3.3V and operates within a commercial temperature range of 0°C to 85°C.

Packaged in a 100-TQFP (14x14) format, the EPM240T100C3N is designed for surface mounting. Its robust specifications make it suitable for various digital logic designs requiring programmable flexibility and performance.

This device is supported by Altera's Quartus II design software, which facilitates HDL and schematic design entry, compilation, synthesis, simulation, and device programming.

EPM240T100C3N Quick Information

Product Type: CPLD

Series: MAX II

Canonical Name: Altera EPM240T100C3N CPLD

Subcategory: Complex Programmable Logic Devices

EPM240T100C3N Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

EPM240T100C3N Estimated Pricing

Qty	Low	High
1+	$0.50	$0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM240T100C3N Features

240 logic elements and 192 macrocells.
Maximum propagation delay of 4.7 ns.
Supports 2.5V and 3.3V internal supply.
Commercial operating temperature range.
Surface mount 100-TQFP package.

EPM240T100C3N Applications

Used in embedded digital systems
Suitable for high-speed logic processing
Ideal for control and signal processing
Designed for compact PCB integration

EPM240T100C3N FAQs

6 frequently asked questions generated from this part’s specifications.

What is the propagation delay of the EPM240T100C3N?

The maximum propagation delay for the EPM240T100C3N is 4.7 ns.

What are the operating voltage requirements for the EPM240T100C3N?

The EPM240T100C3N supports internal supply voltages of 2.5V and 3.3V.

What is the operating temperature range for this CPLD?

The EPM240T100C3N operates in a temperature range of 0°C to 85°C.

What package type is the EPM240T100C3N supplied in?

The EPM240T100C3N is supplied in a 100-TQFP package.

How many logic elements does the EPM240T100C3N have?

The EPM240T100C3N has 240 logic elements.

What is the Moisture Sensitivity Level (MSL) for the EPM240T100C3N?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
