EPM240M100C5N The Intel EPM240M100C5N is a high-performance CPLD with 240 logic elements and 192 macrocells. It offers 80 I/O pins and a fast propagation delay of 4.7 ns.
Mfr Part #:

EPM240M100C5N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EPM240M100C5N is a high-performance CPLD with 240 logic elements and 192 macrocells. It offers 80 I/O pins and a fast propagation delay of 4.7 ns.
✓ Total Stock: 10,000 pcs

EPM240M100C5N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM240M100C5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Frequency
Mounting Type
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

EPM240M100C5N Description

Short technical summary and product information.

The Intel EPM240M100C5N is a Complex Programmable Logic Device (CPLD) from the MAX II series, designed for robust digital logic applications. It features a high logic density with 240 logic elements and 192 macrocells, providing significant flexibility for complex functions.



This CPLD supports 80 I/O pins, offering ample connectivity options. It operates with dual voltage supplies of 2.5V and 3.3V, enhancing system compatibility. The device boasts a fast performance with a maximum propagation delay (tpd) of 4.7 ns, making it suitable for high-speed operations. It is also in-system programmable, allowing for easy updates and integration.

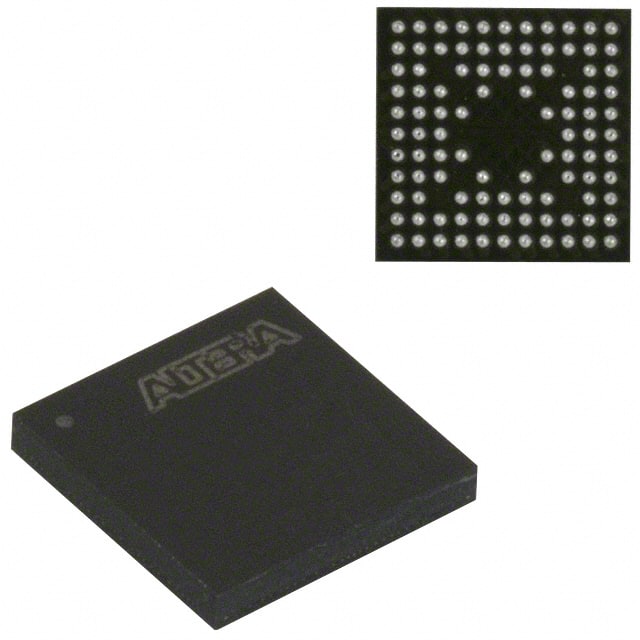

The EPM240M100C5N is available in a 100-TFBGA package, specifically a 100-MBGA (6x6) variant, designed for surface-mount technology (SMT). This makes it ideal for compact designs and applications requiring efficient board space utilization. The operating temperature range is 0°C to 85°C (TJ).



Applications for the EPM240M100C5N include telecommunications, industrial automation, consumer electronics, automotive systems, and medical devices, owing to its high logic density and versatile programmability.

EPM240M100C5N Quick Information

Product Type: CPLD
Series: MAX II
Canonical Name: Intel EPM240M100C5N CPLD
Subcategory: CPLD

EPM240M100C5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM240M100C5N Features

  • 240 logic elements and 192 macrocells.
  • 80 flexible I/O pins available.
  • Fast 4.7 ns maximum propagation delay.
  • Supports 2.5V and 3.3V supply.
  • Surface mount 100-TFBGA package.

EPM240M100C5N Applications

  • Ideal for telecommunications equipment.
  • Used in industrial automation control.
  • Suitable for consumer electronics.
  • Applicable in automotive systems.
  • Designed for medical devices.

EPM240M100C5N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of logic elements in the EPM240M100C5N?

The EPM240M100C5N has 240 logic elements.

How many I/O pins does the EPM240M100C5N offer?

The EPM240M100C5N offers 80 I/O pins.

What is the maximum propagation delay for the EPM240M100C5N?

The maximum propagation delay (tpd) for the EPM240M100C5N is 4.7 ns.

What are the supported voltage supply options for the EPM240M100C5N?

The EPM240M100C5N supports 2.5V and 3.3V voltage supplies.

What is the operating temperature range for the EPM240M100C5N?

The operating temperature range for the EPM240M100C5N is 0°C to 85°C (TJ).

What type of package is the EPM240M100C5N supplied in?

The EPM240M100C5N is supplied in a 100-TFBGA package.

Is the EPM240M100C5N in-system programmable?

Yes, the EPM240M100C5N is in-system programmable.
