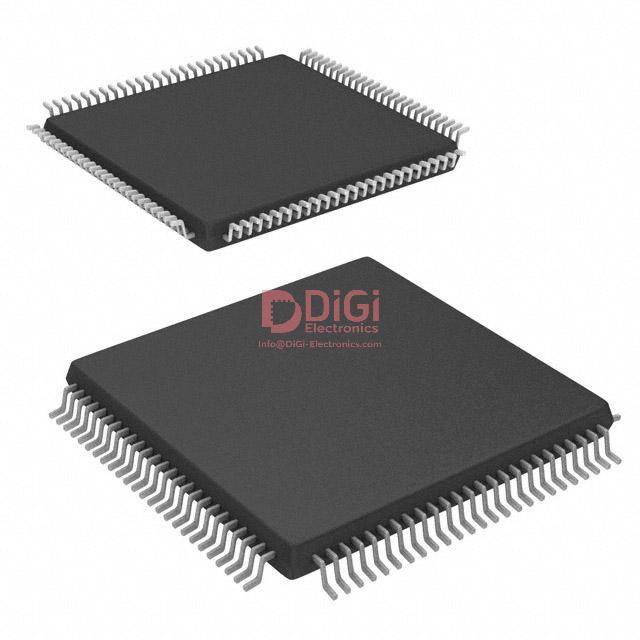

EPM240GT100C5N The Intel EPM240GT100C5N is a CPLD from the MAX II series with 240 logic elements and a maximum delay of 4.7 ns. It is designed for in-system programmability.
Mfr Part #:

EPM240GT100C5N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EPM240GT100C5N is a CPLD from the MAX II series with 240 logic elements and a maximum delay of 4.7 ns. It is designed for in-system programmability.
✓ Total Stock: 3 pcs

EPM240GT100C5N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM240GT100C5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Type
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Tape & Reel
Voltage Supply
View Similar Products (0)

EPM240GT100C5N Description

Short technical summary and product information.

This Intel EPM240GT100C5N is a Complex Programmable Logic Device (CPLD) belonging to the MAX II series. It offers 240 logic elements and 192 macrocells, with a maximum propagation delay of 4.7 ns. The device operates within a voltage supply range of 1.71V to 1.89V and features 80 I/O pins.



Designed for in-system programmability, the EPM240GT100C5N is suitable for various embedded applications. It operates within a commercial temperature range of 0°C to 85°C (TJ).



The CPLD is housed in a 100-TQFP package, measuring 14x14 mm, and is designed for surface mounting. Its compact size and surface-mount capability make it suitable for integration into densely populated circuit boards.

EPM240GT100C5N Quick Information

Product Type: CPLD
Series: MAX II
Canonical Name: Intel EPM240GT100C5N CPLD
Subcategory: Complex Programmable Logic Devices

EPM240GT100C5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPM240GT100C5N Features

  • 240 logic elements and 192 macrocells.
  • Maximum propagation delay of 4.7 ns.
  • Operates from a 1.71V to 1.89V supply.
  • Features 80 I/O pins.
  • Surface mountable 100-TQFP package.

EPM240GT100C5N Applications

  • Used in embedded logic control systems
  • Suitable for high-speed digital applications
  • Ideal for programmable logic in compact devices
  • Supports in-system firmware updates

EPM240GT100C5N FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum propagation delay for the EPM240GT100C5N?

The maximum propagation delay is 4.7 ns.

What is the operating voltage supply for the EPM240GT100C5N?

The operating voltage supply is between 1.71V and 1.89V.

How many logic elements does the EPM240GT100C5N have?

It has 240 logic elements.

What is the operating temperature range for this CPLD?

The operating temperature range is 0°C to 85°C (TJ).

What type of package is the EPM240GT100C5N supplied in?

It is supplied in a 100-TQFP package.
