Mfr Part #:

EPM2210GF256C5N

Mfr Name: Altera

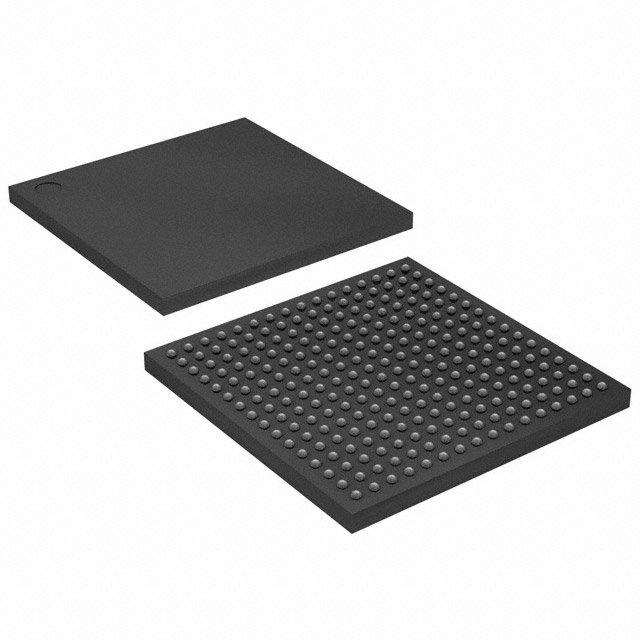

The Altera EPM2210GF256C5N is a high-performance CPLD from the MAX II series. It offers 2210 logic elements and 204 I/Os for complex digital designs.

✓ Total Stock: 6,016 pcs

$ Price Range: $0.50

EPM2210GF256C5N Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	3,616 pcs On Request	3616 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,400 pcs On Request	2400 pcs	On Request	1	On Request	On Request	15+	On Request	On Request

EPM2210GF256C5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Altera
Mounting Type	Surface Mount
Operating Temperature	0°C to 85°C
Operating Voltage	1.8V
SVHC Present	Not Present

View Similar Products (0)

EPM2210GF256C5N Description

Short technical summary and product information.

The Altera EPM2210GF256C5N is a high-performance Complex Programmable Logic Device (CPLD) belonging to the MAX II series. Designed for robust and flexible logic solutions, this CPLD features 2210 logic elements/blocks and 1700 macrocells, providing ample resources for intricate digital designs. It offers 204 I/Os for versatile interfacing capabilities.

With an operating voltage range of 1.71V to 1.89V, centered around 1.8V, and an operating temperature range of 0°C to 85°C (TJ), the EPM2210GF256C5N ensures reliable performance across various environmental conditions. The device supports In-System Programmable (ISP) functionality for easy updates and reprogramming.

Packaged in a 256FBGA format suitable for surface mount applications, this CPLD is designed for compact and efficient integration into modern electronic systems. Its high logic density and versatile I/O options make it suitable for applications in telecommunications, consumer electronics, industrial automation, automotive electronics, and medical devices.

EPM2210GF256C5N Quick Information

Product Type: CPLD

Series: MAX II

Canonical Name: Altera EPM2210GF256C5N CPLD

Subcategory: CPLD

EPM2210GF256C5N Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

EPM2210GF256C5N Estimated Pricing

Qty	Low	High
1+	$0.50	$0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM2210GF256C5N Features

2210 logic elements and 1700 macrocells.
204 I/O pins for versatile interfacing.
1.8V nominal operating voltage.
0°C to 85°C operating temperature range.
256FBGA package for surface mounting.

EPM2210GF256C5N Applications

Ideal for telecommunications signal processing.
Suitable for consumer electronics embedded control.
Used in industrial automation systems.
Provides logic for automotive control units.
Applicable in medical device designs.

EPM2210GF256C5N FAQs

6 frequently asked questions generated from this part’s specifications.

What is the maximum clock frequency of the EPM2210GF256C5N?

The maximum clock frequency is 304MHz.

What is the operating voltage range of this CPLD?

The operating voltage range is 1.71V to 1.89V (nominal 1.8V).

What package does the EPM2210GF256C5N come in?

It comes in a 256-ball Fine-Pitch Ball Grid Array (256-FBGA) package.

What is the operating temperature range?

The operating junction temperature range is 0°C to 85°C.

How many macrocells does this device have?

It has 1700 macrocells.

Is the EPM2210GF256C5N in-system programmable?

Yes, it is in-system programmable (ISP) via Flash memory.
