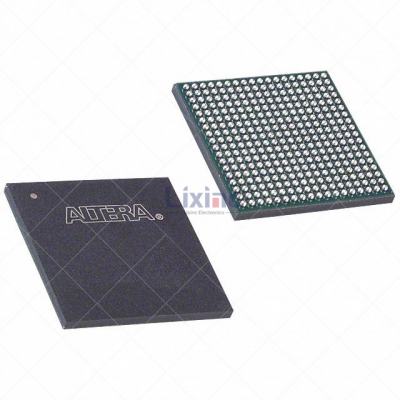

EPM2210F324I5N The Altera EPM2210F324I5N is a CPLD from the MAX II family, offering 1700 macrocells and a clock frequency of 201.1 MHz. It operates within a supply voltage range of 2.375V to 3.6V.
Mfr Part #:

EPM2210F324I5N

Available from 1 distributors
Mfr Name: Altera
Altera
The Altera EPM2210F324I5N is a CPLD from the MAX II family, offering 1700 macrocells and a clock frequency of 201.1 MHz. It operates within a supply voltage range of 2.375V to 3.6V.
✓ Total Stock: 720 pcs
$ Price Range: $0.50

EPM2210F324I5N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
720 pcs
On Request
720 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM2210F324I5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Number of Pins
Operating Temperature
Propagation Delay
SVHC Present
Tape & Reel
Technology
Voltage
View Similar Products (0)

EPM2210F324I5N Description

Short technical summary and product information.

The EPM2210F324I5N is a Complex Programmable Logic Device (CPLD) manufactured by Altera, belonging to the MAX II family. This component features 1700 macrocells and operates at a clock frequency of 201.1 MHz. It supports a wide supply voltage range, from 2.375V to 2.625V and 3V to 3.6V, making it versatile for various applications.



The device has 272 I/O lines and a propagation delay of 11.2 ns, with a global clock setup time of 1.9 ns. It is designed for operation within an industrial temperature range of -40°C to +100°C.



The EPM2210F324I5N comes in a 324-pin FBGA package. Its 0.18um technology ensures efficient performance for embedded systems requiring programmable logic.



This CPLD is suitable for applications demanding flexible logic implementation and high-speed operation within its specified parameters.

EPM2210F324I5N Quick Information

Product Type: CPLD
Series: MAX II
Canonical Name: Altera EPM2210F324I5N CPLD
Subcategory: Complex Programmable Logic Devices

EPM2210F324I5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

EPM2210F324I5N Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM2210F324I5N Features

  • 1700 macrocells for complex logic.
  • Operates at 201.1 MHz clock frequency.
  • Supports 2.375V to 3.6V supply voltage.
  • Industrial temperature range: -40°C to +100°C.
  • 324-pin FBGA package for integration.

EPM2210F324I5N Applications

  • Ideal for embedded system logic.
  • Suitable for high-speed signal processing.
  • Used in industrial control applications.
  • Flexible logic implementation needs.

EPM2210F324I5N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the EPM2210F324I5N?

The EPM2210F324I5N operates with a supply voltage range of 2.375 V to 2.625 V and also supports a range of 3 V to 3.6 V.

What is the operating temperature range of the EPM2210F324I5N?

The operating temperature range is -40°C to +100°C.

What package does the EPM2210F324I5N come in?

The EPM2210F324I5N is packaged in a 324-ball Fine-Pitch Ball Grid Array (FBGA).

How many macrocells does the EPM2210F324I5N have?

The EPM2210F324I5N has 1700 macrocells.

What is the maximum clock frequency of the EPM2210F324I5N?

The maximum clock frequency is 201.1 MHz.

What is the propagation delay of the EPM2210F324I5N?

The propagation delay is 11.2 ns.
