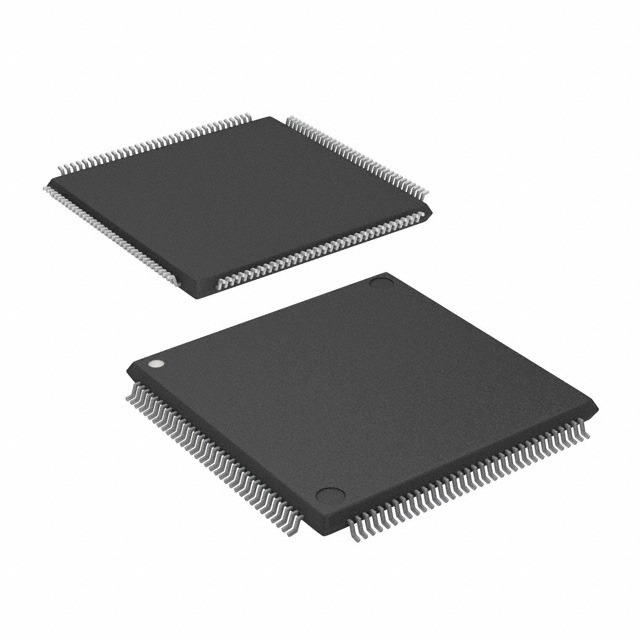

EPM1270T144I5N The Altera EPM1270T144I5N is a high-performance CPLD from the MAX II series. It offers 1270 logic elements and 980 macrocells for complex logic applications.
Mfr Part #:

EPM1270T144I5N

Available from 3 distributors
Mfr Name: Altera
Altera
The Altera EPM1270T144I5N is a high-performance CPLD from the MAX II series. It offers 1270 logic elements and 980 macrocells for complex logic applications.
✓ Total Stock: 8,240 pcs
$ Price Range: $0.50

EPM1270T144I5N Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,880 pcs
On Request
4880 pcs On Request 1 On Request On Request 21+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
2,160 pcs
On Request
2160 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPM1270T144I5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Programmable Type
Propagation Delay
Storage Temperature
Tape & Reel
View Similar Products (0)

EPM1270T144I5N Description

Short technical summary and product information.

The Altera EPM1270T144I5N is a Complex Programmable Logic Device (CPLD) belonging to the MAX II family, designed for high-density programmable logic with low power consumption. This device features 1270 logic elements and 980 macrocells, providing substantial resources for intricate designs.



Key electrical characteristics include an internal supply voltage of 2.5V and 3.3V, 116 I/O pins, and a maximum clock frequency of 304MHz. The maximum propagation delay is rated at 6.2 ns, ensuring high-speed operation suitable for demanding applications.



This CPLD is available in a 144-pin TQFP package, designed for surface-mount applications. Its robust mechanical stability and suitability for modern PCB designs make it a versatile choice. The device is In System Programmable, allowing for flexible and dynamic reprogramming.



Applications for the EPM1270T144I5N include telecommunications for signal processing and protocol conversion, industrial automation for control systems, consumer electronics for advanced features, automotive systems, and medical devices.

EPM1270T144I5N Quick Information

Product Type: CPLD
Series: MAX II
Canonical Name: Altera EPM1270T144I5N CPLD
Subcategory: Complex Programmable Logic Device

EPM1270T144I5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected

EPM1270T144I5N Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPM1270T144I5N Features

  • 1270 logic elements and 980 macrocells.
  • 116 I/O pins for extensive connectivity.
  • Operates at 2.5V and 3.3V internal voltages.
  • Maximum propagation delay of 6.2 ns.
  • Surface mount TQFP package.

EPM1270T144I5N Applications

  • Used in telecommunications equipment.
  • Suitable for industrial automation.
  • Enables features in consumer electronics.
  • Applicable in automotive systems.
  • Designed for medical devices.

EPM1270T144I5N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the logic capacity of the EPM1270T144I5N?

The EPM1270T144I5N features 1270 logic elements and 980 macrocells.

How many I/O pins does the EPM1270T144I5N have?

The EPM1270T144I5N has 116 I/O pins.

What are the operating voltages for the EPM1270T144I5N?

The EPM1270T144I5N operates at internal supply voltages of 2.5V and 3.3V.

What is the maximum propagation delay of the EPM1270T144I5N?

The maximum propagation delay for the EPM1270T144I5N is 6.2 ns.

What type of package is the EPM1270T144I5N in?

The EPM1270T144I5N is available in a TQFP package and is surface mounted.

Is the EPM1270T144I5N RoHS compliant?

The EPM1270T144I5N is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the EPM1270T144I5N?

The Moisture Sensitivity Level (MSL) for the EPM1270T144I5N is 3 (168 Hours).
