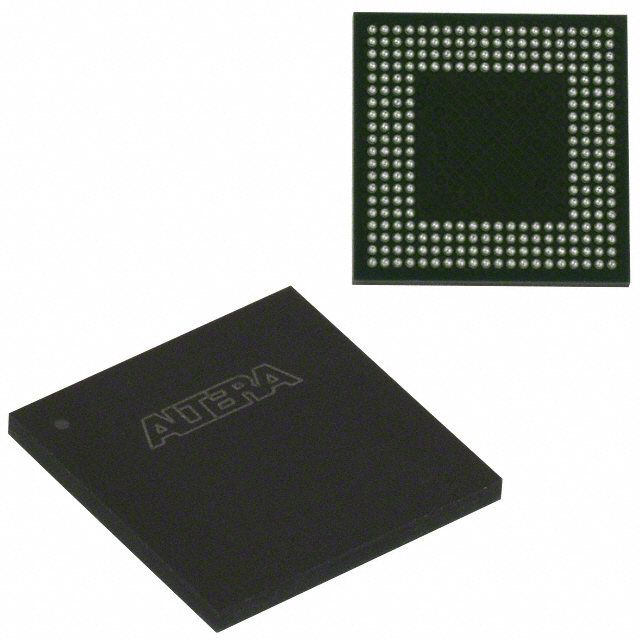

The Intel EPM1270M256I5N is a Complex Programmable Logic Device (CPLD) belonging to the MAX II series. It provides a substantial programmable logic capacity with 1270 logic elements and 980 macrocells, making it suitable for complex design requirements.
This CPLD operates with internal voltage supplies of 2.5V and 3.3V, offering flexibility for various system power configurations. It features 212 I/Os for extensive connectivity and a maximum propagation delay of 6.2 ns, ensuring high-speed performance for demanding applications.
The EPM1270M256I5N is designed for in-system programmability, allowing for convenient updates and modifications. It is packaged in a compact 256-ball BGA (Ball Grid Array) format, ideal for surface mount designs on space-constrained PCBs.
Applications for this device include telecommunications, industrial automation, consumer electronics, and automotive systems. Development is supported by Intel's Quartus II Software and MAX II Development Kit.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates from 2.5V to 3.3V internal supply.
It is available in a 256-BGA (Ball Grid Array) package with surface mount mounting.
It contains 1270 logic elements.
It integrates 980 macrocells.
The device supports frequencies up to 304MHz.
The maximum propagation delay is 6.2ns.
It provides 212 user I/O pins.
