| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,400 pcs
|
3400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage Supply |
The Intel EPM1270M256C5N is a Complex Programmable Logic Device (CPLD) from the MAX II family. This device offers 1270 logic elements and 980 macrocells, making it suitable for various embedded applications requiring programmable logic.
Key electrical characteristics include an operating voltage range of 2.5V to 3.3V and a maximum propagation delay of 6.2 ns. The CPLD is designed for in-system programmability and operates within a commercial temperature range of 0°C to 85°C (TJ).

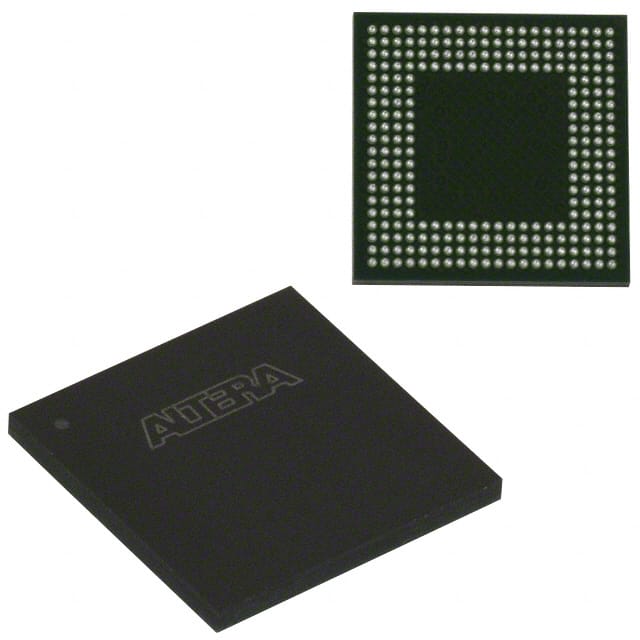

This component is housed in a 256-TFBGA package and is designed for surface mounting. Its specifications make it a versatile choice for digital logic designs where flexibility and performance are critical. The device is RoHS3 compliant and falls under MSL 1.
The MAX II devices are supported by Altera's Quartus II design software, which facilitates HDL and schematic design entry, compilation, synthesis, simulation, and device programming. This software supports various operating systems and integrates with industry-leading EDA tools.
The EPM1270M256C5N has 1270 logic elements.
The EPM1270M256C5N contains 980 macrocells.
The maximum propagation delay for the EPM1270M256C5N is 6.2 ns.
The EPM1270M256C5N operates with supply voltages of 2.5V and 3.3V.
The operating temperature range for the EPM1270M256C5N is 0°C to 85°C (TJ).
The EPM1270M256C5N is supplied in a 256-TFBGA package.
