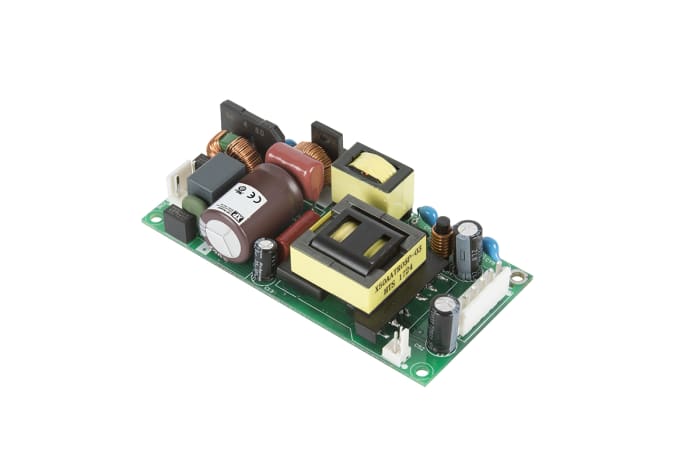

The XP Power EPL150PS28 is an open frame AC DC converter designed for ITE and industrial applications. It provides a stable 28V DC output with a power rating of up to 150W when force cooled. The unit accepts a wide input voltage range of 80-264V AC, ensuring versatility in global applications.
Key specifications include a 3.5A output current (5.4A forced air), 93% efficiency, and a compact chassis mount design with dimensions of 101.6mm x 50.8mm x 25.2mm. The operating temperature range is -20°C to 70°C with derating. This power supply is approved by CB, TUV, and UL, and complies with standard 62368-1.
The EPL150 series is designed to maximize efficiency across the load range and minimize no-load power consumption. This reduces heat dissipation and running costs, aligning with environmental goals. The product offers high power density and a low profile, making it suitable for space-constrained designs.
The input voltage range is 80 to 264V AC.
It provides 28V DC output at 3.5A (5.4A with forced air).
98W typical, and up to 151W with forced air.
Typical efficiency is 93%, up to 95%.
-20°C to +70°C with derating.
Chassis mount open frame package.
101.6mm x 50.8mm x 25.2mm (4.00 x 2.00 x 0.99 inches).
