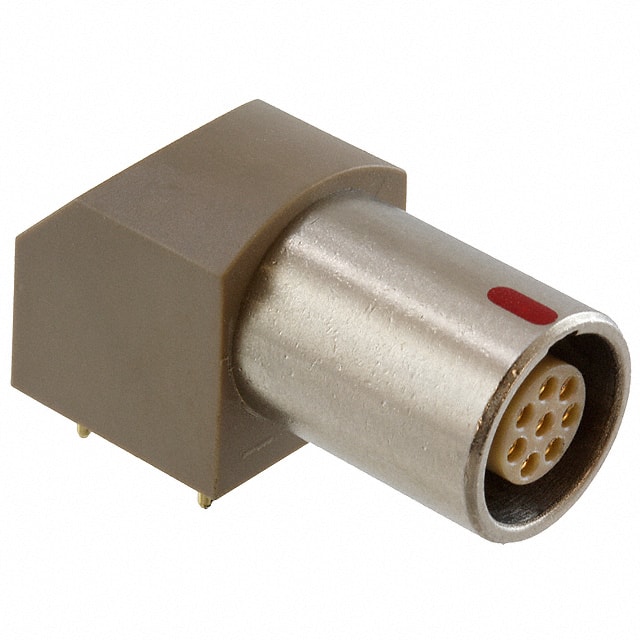

The LEMO EPG.1B.308.HLN is a high-performance 8-position female circular connector from the B series, designed for indoor keyed applications. It features a receptacle with female sockets, offering a push-pull locking mechanism for secure and quick mating. The connector has a shell size 308 and is constructed with a metal shell (brass and PPS housing) with nickel finish, providing durability and shielding. The contacts are gold-plated with a diameter of 0.7 mm, ensuring low contact resistance of 6.1 mOhm maximum.
Electrically, the connector is rated for 2 A current per contact and can withstand test voltages of 1.3 kV rms between contact-body shell and contact-contact. It supports up to 4 high-speed differential pairs. The operating temperature range is -55°C to 250°C, and it has an ingress protection rating of IP50 (dust protected). Environmental durability includes 5000 mating cycles, shock resistance of 100 g, vibration resistance of 15 g, and salt spray corrosion resistance over 144 hours.
Mechanically, the connector is mounted through hole with right-angle orientation, terminated by solder. It is keyed with G orientation (1 key, alpha=0). The weight is 12.33 g. The material flammability rating is UL94 V-0. The connector is shielded, providing shielding effectiveness of 75 dB at 10 MHz and 40 dB at 1 GHz. This connector is suitable for industrial, medical, and test equipment requiring reliable signal integrity and environmental robustness.
It has 8 positions (female sockets).
The current rating is 2 A per contact.
Through Hole, Right Angle with solder termination.
Push-pull locking.
-55°C to 250°C.
Yes, shielded with shielding effectiveness of 75 dB at 10 MHz and 40 dB at 1 GHz.
IP50 (dust protected).
