| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style |

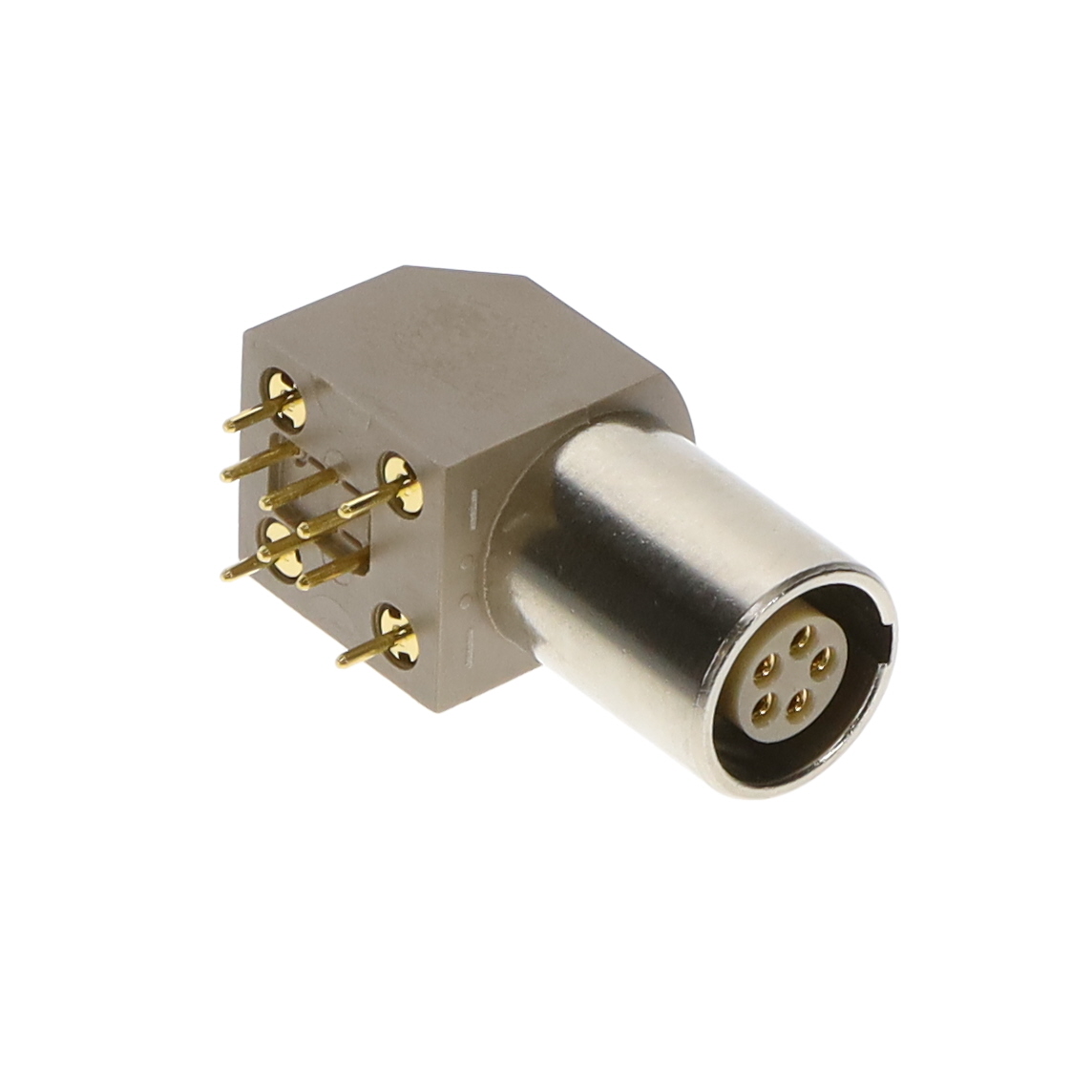

The LEMO EPG.1B.305.HLN is a 5 position circular connector receptacle with female sockets. It is part of the 1B series known for indoor use with keyed orientation. The connector features a metal shell made of brass and Polyphenylene Sulfide (PPS) with a nickel finish, providing durability and shielding. The contacts are gold plated for reliable low-resistance connections.
This receptacle is designed for through hole right angle mounting with solder termination, making it suitable for PCB applications where space is constrained. The push-pull fastening mechanism ensures secure mating and easy disconnection. The connector is shielded and includes a ground feature for enhanced electromagnetic compatibility.
Electrical specifications include a current rating of 4.5 A and an operating temperature range from -55°C to 250°C. The connector is rated IP50, offering protection against dust. The material flammability rating is UL94 V-0, ensuring safety in various environments. The connector is compliant with RoHS3 and REACH regulations.
The connector has 5 positions.
The current rating is 4.5 A.
The mounting type is Through Hole, Right Angle.
It is a receptacle with female sockets.
The fastening type is Push-Pull.
The operating temperature range is -55°C to 250°C.
The ingress protection rating is IP50 - Dust Protected.
