| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
401 pcs
|
401 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Class3 Productibility Level Compatibility | |
| Climatic Category | |
| Color | |
| Connector Type | |
| Contact Diameter | |
| Contact Finish | |
| Contact Resistance (Max) | |
| Contact Termination | |
| Current Rating (Amps) | |
| Endurance | |
| Fastening Type | |
| Features | |
| Footprint IPC Class3 Compatibility | |
| Gender | |
| Housing Material | |
| Humidity (Max) | |
| Ingress Protection | |
| Insert Configuration | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Salt Spray Corrosion | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shielding Effectiveness (Minimum @ 1 GHz) | |
| Shielding Effectiveness (Minimum @ 10 MHz) | |
| Shock Resistance | |
| Termination | |
| Termination Style | |
| Test Voltage (@ contact-shell) | |
| Test Voltage (Contact-Contact) | |
| Vibration | |
| Weight |

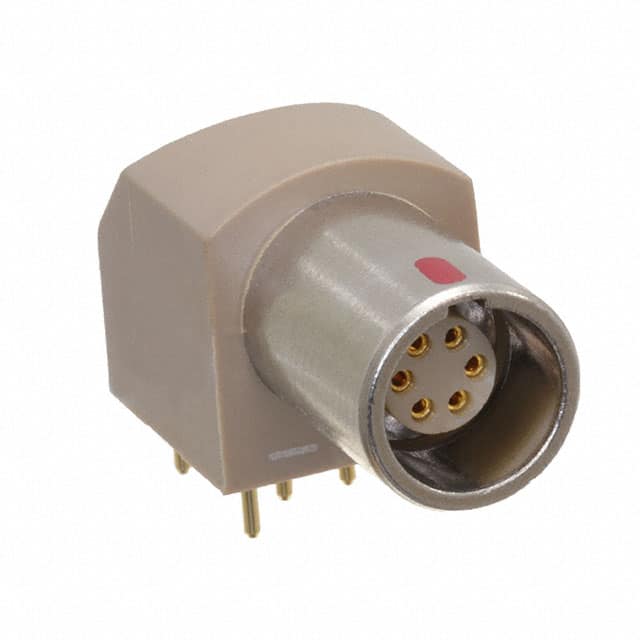

The Lemo EPG.0B.306.HLN is a 6-position female socket circular receptacle from the 0B series. It features a through hole right angle mounting style with solder termination, making it suitable for PCB applications where space is constrained. The connector uses gold-plated contacts for reliable low-resistance connections and a push-pull locking mechanism for quick and secure mating.
This receptacle is shielded with a metal shell that provides 75 dB attenuation at 10 MHz and 40 dB at 1 GHz, offering effective EMI protection. It is rated for 2.5 A current per contact with a maximum contact resistance of 8.7 mOhm. The connector can withstand 1.2 kV DC contact-contact and 0.9 kV DC contact-shell test voltages, and it is designed for 5000 mating cycles.
Environmental specifications include an operating temperature range of -55°C to 250°C, IP50 dust protection, and resistance to vibration (15 g, 10-2000 Hz) and shock (100 g, 6 ms). The housing is made of brass and PPS with nickel plating, and the insulator material is PEEK with UL94 V-0 flammability rating. This connector is suitable for industrial, medical, and test equipment applications requiring reliable circular interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $57.94 | $57.94 |
| 10+ | $49.25 | $49.25 |
| 30+ | $45.57 | $45.57 |
| 50+ | $43.96 | $43.96 |
| 100+ | $41.87 | $41.87 |
| 250+ | $39.25 | $39.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
2.5 A.
Through Hole, Right Angle.
Gold.
Yes, shielded with 75 dB at 10 MHz and 40 dB at 1 GHz.
-55°C to 250°C.
IP50 (dust protected).
