| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Resistance (Max) | |
| Current Rating (Amps) | |
| Endurance (Mating Cycles) | |
| Fastening Type | |
| Features | |
| Humidity (Max) | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Salt Spray Corrosion | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Shock Resistance | |
| Termination | |
| Termination Style | |
| Test Voltage (Contact-Contact) | |
| Test Voltage Contact-Body Shell | |
| Vibration | |
| Weight | |
| shielding_min (Minimum @ 1 GHz) | |
| shielding_min (Minimum @ 10 MHz) |

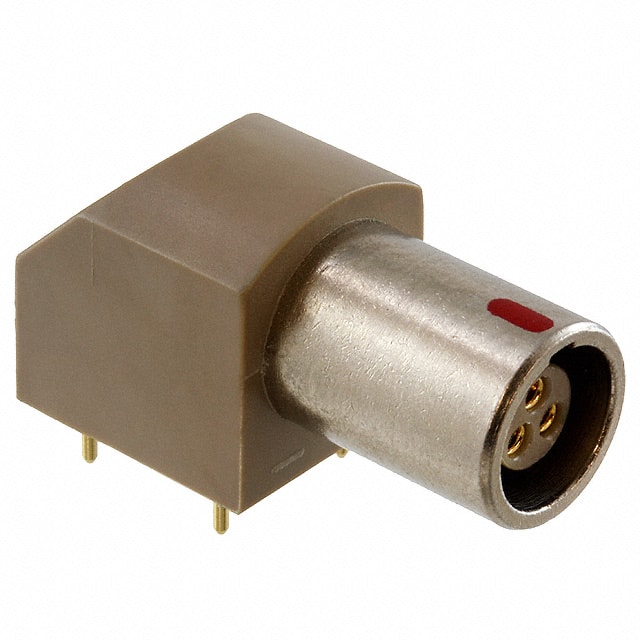

The LEMO EPG.0B.303.HLN is a metal circular connector receptacle from the B series, designed for indoor keyed applications. This 3-position receptacle features female sockets with gold-plated contacts, ensuring reliable low-resistance connections with a maximum contact resistance of 4.8 mOhm. The connector uses a push-pull locking mechanism for quick and secure mating, and is constructed with a nickel-plated brass and PPS shell for durability.
Electrically, the receptacle is rated for 4.5 A continuous current and tested at 1.6 kV rms (contact-body shell) and 1.7 kV rms (contact-contact). It is fully shielded, providing at least 75 dB attenuation at 10 MHz and 40 dB at 1 GHz. The operating temperature range spans -55°C to 250°C, with an IP50 dust protection rating.
The component is offered in a through hole, right angle mounting configuration with solder termination, making it suitable for PCB applications. It weighs 9.66 g and is RoHS and REACH compliant with a flammability rating of UL94 V-0.
This connector has 3 positions.
The current rating is 4.5 A.
It uses through hole, right angle mounting.
The operating temperature range is -55°C to 250°C.
It is rated for 5000 mating cycles.
