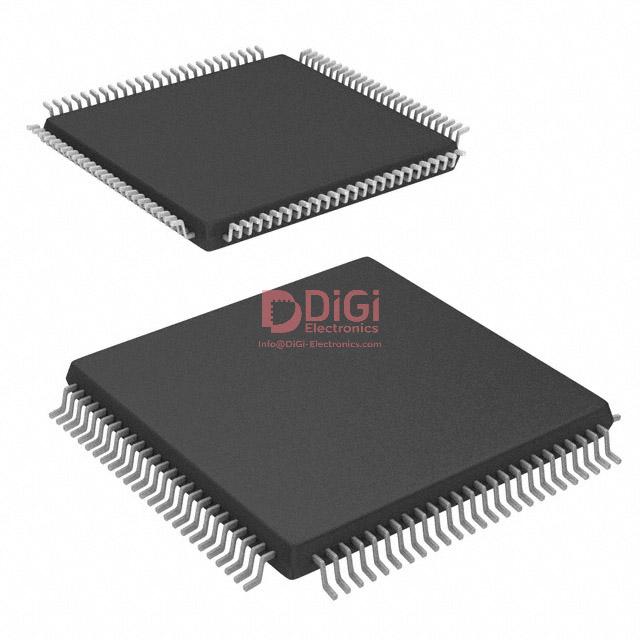

EPF6010ATC100-3N The Intel EPF6010ATC100-3N is a Field Programmable Gate Array (FPGA) with 10,000 gates and 880 logic elements. It features 71 I/O pins and operates within a voltage range of 3V to 3.6V.
Mfr Part #:

EPF6010ATC100-3N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EPF6010ATC100-3N is a Field Programmable Gate Array (FPGA) with 10,000 gates and 880 logic elements. It features 71 I/O pins and operates within a voltage range of 3V to 3.6V.
✓ Total Stock: 6,700 pcs

EPF6010ATC100-3N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,700 pcs
On Request
6700 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPF6010ATC100-3N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of Gates
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Operating Voltage
Supplier Device Package
Total RAM Bits
Voltage
View Similar Products (0)

EPF6010ATC100-3N Description

Short technical summary and product information.

The Intel EPF6010ATC100-3N is a programmable logic device belonging to the FLEX 6000 family. It offers a register-rich, LUT-based architecture with 10,000 typical gates and 880 logic elements (LEs). This FPGA provides 71 I/O pins and operates on a supply voltage ranging from 3V to 3.6V.



Designed for applications requiring flexibility and fast design changes, the EPF6010ATC100-3N features a low-skew clock distribution tree and supports in-circuit reconfigurability. Its architecture is optimized for area efficiency, making it a suitable alternative for high-volume gate array applications.



The device is available in a 100-TQFP package and is designed for surface mounting. It operates within a temperature range of 0°C to 85°C (TJ). The FLEX 6000 family is known for its cost-effectiveness and performance in various embedded systems.

EPF6010ATC100-3N Quick Information

Product Type: FPGA
Series: FLEX 6000
Canonical Name: Intel EPF6010ATC100-3N FPGA
Subcategory: Field Programmable Gate Array

EPF6010ATC100-3N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPF6010ATC100-3N Features

  • 10,000 typical gates
  • 880 logic elements
  • 71 I/O pins
  • 3V to 3.6V operating voltage
  • 0°C to 85°C operating temperature

EPF6010ATC100-3N Applications

  • Ideal for gate array applications
  • Supports fast design changes
  • Suitable for prototyping
  • Programmable logic solutions

EPF6010ATC100-3N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the number of logic elements in the EPF6010ATC100-3N FPGA?

The EPF6010ATC100-3N FPGA has 880 logic elements.

How many I/O pins does the EPF6010ATC100-3N FPGA have?

The EPF6010ATC100-3N FPGA has 71 I/O pins.

What is the operating voltage range for the EPF6010ATC100-3N FPGA?

The EPF6010ATC100-3N FPGA operates within a voltage range of 3V to 3.6V.

What type of package is the EPF6010ATC100-3N FPGA supplied in?

The EPF6010ATC100-3N FPGA is supplied in a 100-TQFP package.

What is the operating temperature for the EPF6010ATC100-3N FPGA?

The EPF6010ATC100-3N FPGA operates from 0°C to 85°C (TJ).

What is the number of gates in the EPF6010ATC100-3N FPGA?

The EPF6010ATC100-3N FPGA has 10,000 typical gates.
