| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of I/O | |
| Storage Temperature |

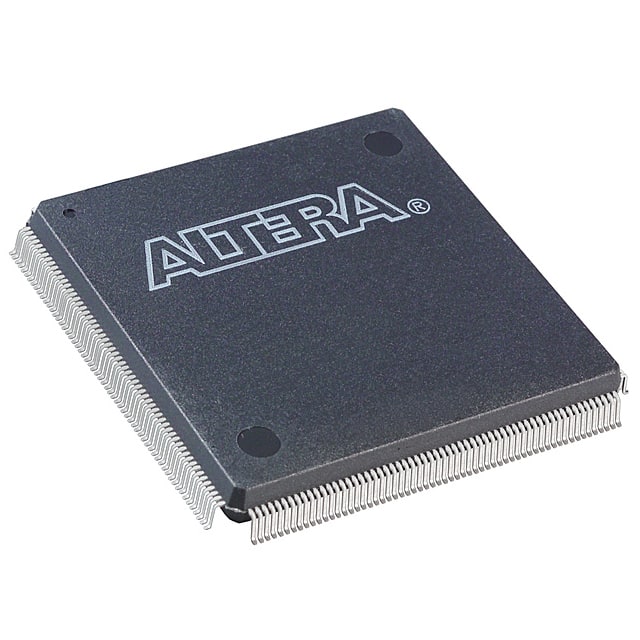

The Altera EPF10K50EQC240-1 is an FPGA from the FLEX 10K family, known as the industry's first embedded PLD. Based on reconfigurable CMOS SRAM elements, it integrates features for implementing gate array megafunctions. This device offers a high density of up to 250,000 gates, with this specific model featuring 50,000 logic elements and 189 I/O pins.
Key specifications include 40,960 RAM bits, with 2,048 bits per embedded array block (EAB). It supports MultiVolt I/O interface and has 5.0-V tolerant input pins. The device exhibits low power consumption, with a typical standby current specification of less than 0.5 mA.
Designed for system-level integration, the FLEX 10K devices allow for configuration on the board, reducing the need for managing multiple ASIC designs. The EPF10K50EQC240-1 comes in a 240-QFP package and is suitable for surface mounting.
This FPGA family provides System-on-a-Programmable-Chip (SOPC) integration, featuring an embedded array for megafunctions like memory and specialized logic, alongside a logic array for general logic functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.15 | $22.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EPF10K50EQC240-1 has 50,000 logic elements.
The EPF10K50EQC240-1 has 189 I/O pins.
The EPF10K50EQC240-1 has a total of 40,960 RAM bits.
The typical standby current for the EPF10K50EQC240-1 is less than 0.5 mA.
The EPF10K50EQC240-1 is supplied in a 240-QFP package.
