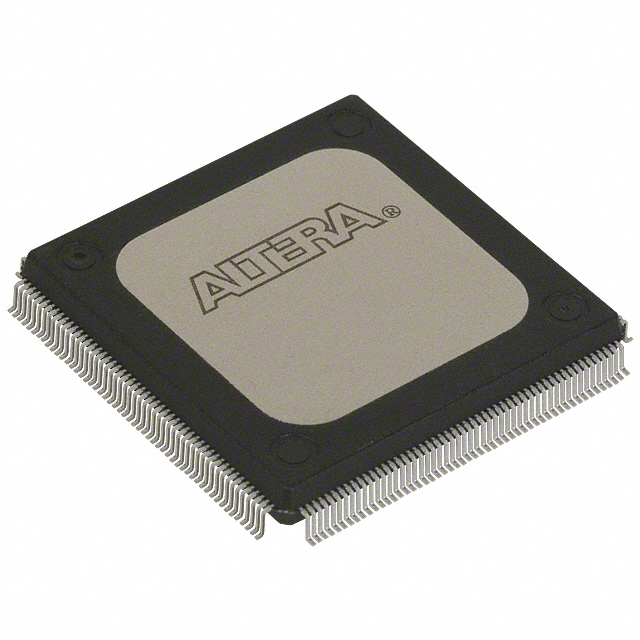

EPF10K40RC208-4 The Intel EPF10K40RC208-4 is an obsolete FPGA with 2304 logic elements and 147 I/O pins. It operates within a voltage range of 4.75V to 5.25V.
Mfr Part #:

EPF10K40RC208-4

Available from 1 distributors
Mfr Name: Altera
Altera
The Intel EPF10K40RC208-4 is an obsolete FPGA with 2304 logic elements and 147 I/O pins. It operates within a voltage range of 4.75V to 5.25V.
✓ Total Stock: 9,040 pcs
$ Price Range: $0.99

EPF10K40RC208-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
9,040 pcs
9040 pcs On Request 1 On Request On Request On Request On Request On Request

EPF10K40RC208-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
SVHC Present

EPF10K40RC208-4 Description

Short technical summary and product information.

The EPF10K40RC208-4 is an IC FPGA (Field Programmable Gate Array) manufactured by Intel. This device is designed for a wide range of applications requiring high performance and flexibility. It features a total of 147 I/O pins and is housed in a 208-pin RQFP package.



The EPF10K40RC208-4 operates within a temperature range of 0°C to 70°C and requires a supply voltage between 4.75V and 5.25V. Despite its obsolescence status, it remains a robust solution for various electronic systems. Key technical specifications include 2,304 logic elements, 93,000 gates, and 16,384 RAM bits.



This FPGA is ideal for applications that demand high-density logic and flexible I/O configurations, commonly used in telecommunications, industrial control, consumer electronics, medical equipment, and automotive systems. Intel provides development tools such as Quartus II Software and Intel FPGA Development Kits to facilitate design and implementation.



The EPF10K40RC208-4 is compatible with surface mount designs, simplifying integration into modern PCB layouts. Its high logic density, flexible I/O configuration, and robust RAM capacity make it a valuable component in the electronics industry.

EPF10K40RC208-4 Quick Information

Product Type: FPGA (Field Programmable Gate Array)
Series: EPF10K
Canonical Name: EPF10K40RC208-4 FPGA
Subcategory: Field Programmable Gate Array

EPF10K40RC208-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPF10K40RC208-4 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPF10K40RC208-4 Features

  • Features 2,304 logic elements/cells.
  • Includes 93,000 total gates.
  • Equipped with 16,384 total RAM bits.
  • Offers 147 input/output pins.
  • Operates from 4.75V to 5.25V supply.

EPF10K40RC208-4 Applications

  • Used in telecommunications networking equipment.
  • Suitable for industrial control systems.
  • Applied in consumer electronics signal processing.
  • Found in medical equipment systems.
  • Integrated into automotive infotainment systems.

EPF10K40RC208-4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of logic elements in the EPF10K40RC208-4?

The EPF10K40RC208-4 has 2,304 logic elements/cells.

How many I/O pins does the EPF10K40RC208-4 have?

The EPF10K40RC208-4 has 147 I/O pins.

What is the operating voltage range for the EPF10K40RC208-4?

The operating voltage for the EPF10K40RC208-4 is 4.75V to 5.25V.

What is the package type for the EPF10K40RC208-4?

The EPF10K40RC208-4 is available in a RQFP-208 package.

What is the speed grade of the EPF10K40RC208-4?

The speed grade for the EPF10K40RC208-4 is 4.

What is the operating temperature range of the EPF10K40RC208-4?

The EPF10K40RC208-4 operates within a temperature range of 0°C to 70°C.

What is the mounting type for the EPF10K40RC208-4?

The EPF10K40RC208-4 has a Surface Mount mounting type.
