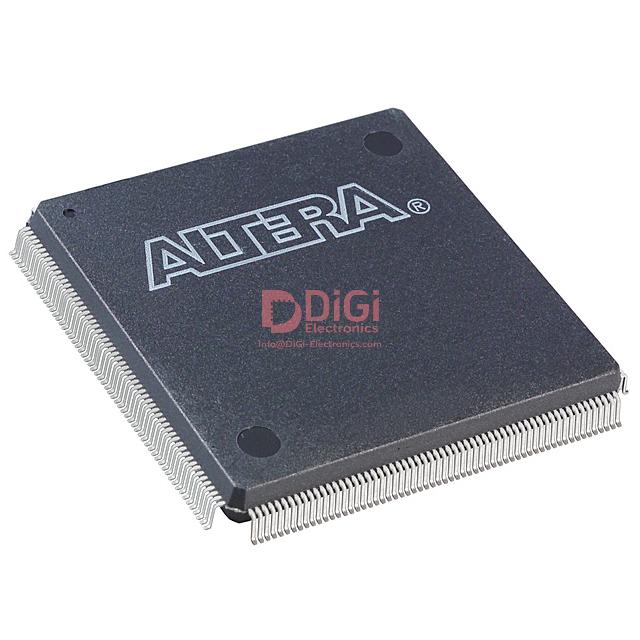

EPF10K30RI240-4

The Altera FLEX 10K family, including the EPF10K30RI240-4, represents an early generation of embedded programmable logic devices (PLDs) designed for System-on-a-Programmable-Chip (SOPC) integration. These devices feature an embedded array for implementing megafunctions like memory and specialized logic, alongside a logic array for general logic functions.

The EPF10K30RI240-4 offers a typical gate count of 30,000, with a maximum system gate count of 69,000. It contains 1,728 logic elements (LEs), 216 logic array blocks (LABs), and 6 embedded array blocks (EABs) providing 12,288 RAM bits. The device supports a 5.0V supply voltage and features MultiVolt I/O interface support with 5.0-V tolerant input pins. It also includes system-level features such as low power consumption, compliance with PCI Local Bus Specification Revision 2.2, and built-in JTAG boundary-scan test circuitry.

Designed for in-circuit reconfigurability, the EPF10K30RI240-4 can be configured via an external configuration device, an intelligent controller, or the JTAG port. It incorporates ClockLock and ClockBoost options for reduced clock delay and skew, along with built-in low-skew clock distribution trees. The device undergoes 100% functional testing.
