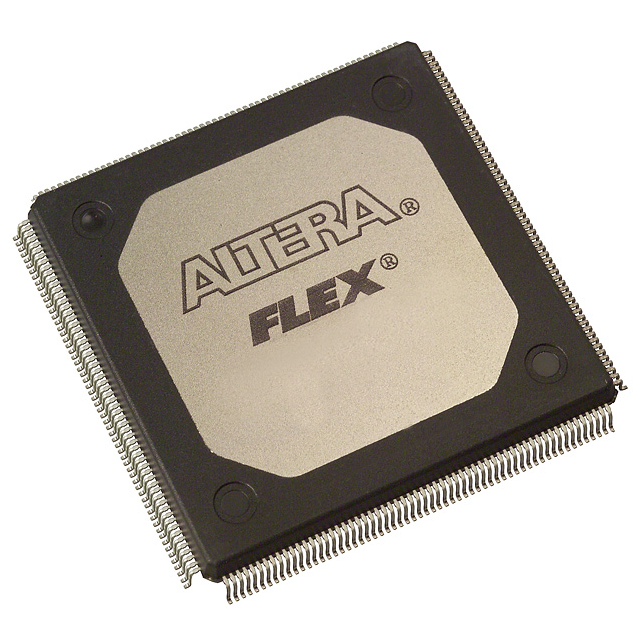

EPF10K100ARC240-2 The Altera EPF10K100ARC240-2 is a Field Programmable Gate Array (FPGA) with 158,000 gates and 4992 logic elements. It features 24576 RAM bits and 189 I/O pins.
Mfr Part #:

EPF10K100ARC240-2

Available from 1 distributors
Mfr Name: Altera
Altera
The Altera EPF10K100ARC240-2 is a Field Programmable Gate Array (FPGA) with 158,000 gates and 4992 logic elements. It features 24576 RAM bits and 189 I/O pins.
✓ Total Stock: 126 pcs
$ Price Range: $4.72

EPF10K100ARC240-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
126 pcs
On Request
126 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EPF10K100ARC240-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Gates
Number of I/O
Supply Voltage
View Similar Products (0)

EPF10K100ARC240-2 Description

Short technical summary and product information.

The Altera EPF10K100ARC240-2 is an embedded programmable logic device belonging to the FLEX-10KA series. This FPGA offers a high density of 158,000 maximum system gates and 4992 logic elements (LEs), supported by 624 logic array blocks (LABs).



It includes 24576 RAM bits, distributed across 12 embedded array blocks (EABs), providing ample memory for system integration. The device supports up to 189 user I/O pins and operates within a supply voltage range of 3V to 3.6V.



Designed for surface mounting, the EPF10K100ARC240-2 comes in a 240-BFQFP package with an exposed pad. It operates within a temperature range of 0°C to 70°C (TA). This FPGA family was the industry's first to provide System-on-a-Programmable-Chip (SOPC) integration, featuring an embedded array for implementing megafunctions and a logic array for general logic functions.

EPF10K100ARC240-2 Quick Information

Product Type: FPGA
Series: FLEX-10KA
Canonical Name: EPF10K100ARC240-2 FPGA
Subcategory: Field Programmable Gate Array

EPF10K100ARC240-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EPF10K100ARC240-2 Estimated Pricing

Qty Low High
1+ $4.72 $4.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPF10K100ARC240-2 Features

  • 158,000 maximum system gates capacity.
  • 4992 logic elements (LEs) available.
  • 24576 total RAM bits for memory functions.
  • 189 user I/O pins for connectivity.
  • Surface mount 240-BFQFP package.

EPF10K100ARC240-2 Applications

  • System-on-a-Programmable-Chip integration.
  • Implementing megafunctions and specialized logic.
  • General logic function implementation.
  • Embedded memory and logic applications.

EPF10K100ARC240-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of logic elements in the EPF10K100ARC240-2?

The EPF10K100ARC240-2 has 4992 logic elements.

How many RAM bits are available on the EPF10K100ARC240-2?

The EPF10K100ARC240-2 features 24576 total RAM bits.

What is the operating voltage range for the EPF10K100ARC240-2?

The supply voltage range for this device is 3V to 3.6V.

What is the operating temperature range for the EPF10K100ARC240-2?

The operating temperature range is 0°C to 70°C (TA).

What type of package is the EPF10K100ARC240-2 in?

The EPF10K100ARC240-2 is in a 240-BFQFP package with an exposed pad.

What is the RoHS status of the EPF10K100ARC240-2?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.
