Mfr Part #:

EPCQL1024F24IN

Mfr Name: Intel

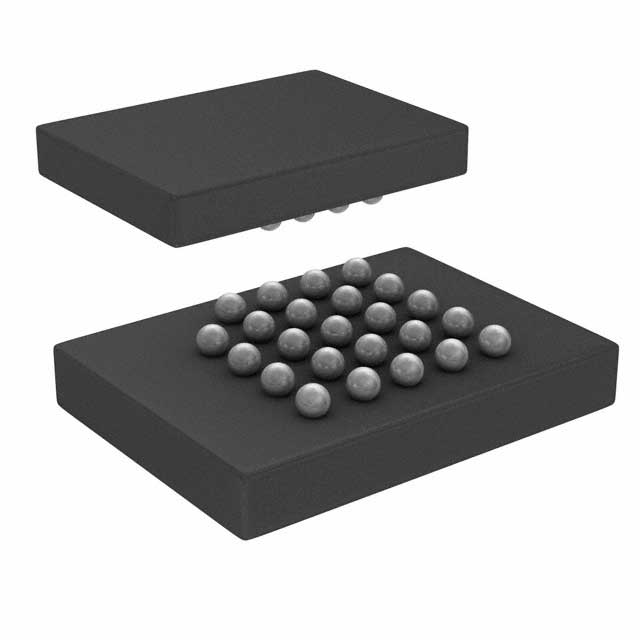

The Intel EPCQL1024F24IN is a 1Gb In System Programmable Configuration PROM designed for FPGAs. It operates within a voltage range of 1.7V to 2V and a temperature range of -40°C to 85°C.

✓ Total Stock: 4,000 pcs

$ Price Range: $1.50

EPCQL1024F24IN Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	4,000 pcs On Request	4000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

EPCQL1024F24IN Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Configuration Proms for FPGAs
Manufacturer Name	Intel
Memory Size	1Gb
Mounting Type	Surface Mount
Operating Temperature	-40°C
Programmable Type	In System Programmable
Supplier Device Package	24-FBGA (6x8)
Voltage	1.7V

View Similar Products (0)

EPCQL1024F24IN Description

Short technical summary and product information.

The Intel EPCQL1024F24IN is a high-density configuration PROM with a memory size of 1Gb, specifically designed for FPGA applications. This device supports In-System Programmability (ISP), allowing for efficient configuration updates without removing the component from the board.

It operates within a low voltage range of 1.7V to 2V, making it suitable for power-sensitive designs. The operating temperature range is from -40°C to 85°C, ensuring reliable performance in various environmental conditions. The component is housed in a 24-LBGA package and is designed for surface mounting.

This configuration PROM plays a crucial role in the initialization sequence of FPGAs, storing the bitstream that defines the FPGA's functionality. Its 1Gb capacity provides ample space for complex configurations, supporting advanced FPGA designs.

EPCQL1024F24IN Quick Information

Product Type: Configuration PROM

Canonical Name: Intel EPCQL1024F24IN Configuration PROM

Subcategory: FPGA Configuration

EPCQL1024F24IN Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

EPCQL1024F24IN Estimated Pricing

Qty	Low	High
1+	$1.50	$1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EPCQL1024F24IN Features

1Gb memory size for FPGA configuration.
In System Programmable for easy updates.
Low operating voltage from 1.7V to 2V.
Wide temperature range: -40°C to 85°C.
Surface mount 24-LBGA package.

EPCQL1024F24IN Applications

Used for FPGA initialization.
Suitable for power-sensitive designs.
Enables flexible configuration management.
Reliable in harsh environments.

EPCQL1024F24IN FAQs

6 frequently asked questions generated from this part’s specifications.

What is the memory size of the Intel EPCQL1024F24IN?

The Intel EPCQL1024F24IN has a memory size of 1Gb.

What is the operating voltage range for the EPCQL1024F24IN?

The operating voltage range for the EPCQL1024F24IN is 1.7V to 2V.

What is the operating temperature range of the Intel EPCQL1024F24IN?

The Intel EPCQL1024F24IN operates within a temperature range of -40°C to 85°C.

What type of package is the EPCQL1024F24IN in?

The EPCQL1024F24IN is available in a 24-LBGA package.

How is the EPCQL1024F24IN mounted?

The EPCQL1024F24IN is a surface mount device.

What is the programmable type of the EPCQL1024F24IN?

The EPCQL1024F24IN is In System Programmable.
