Mfr Part #:

EPC8004

Name: EPC8004
Brand: EPC
SKU: EPC8004

Mfr Name: EPC

Description:

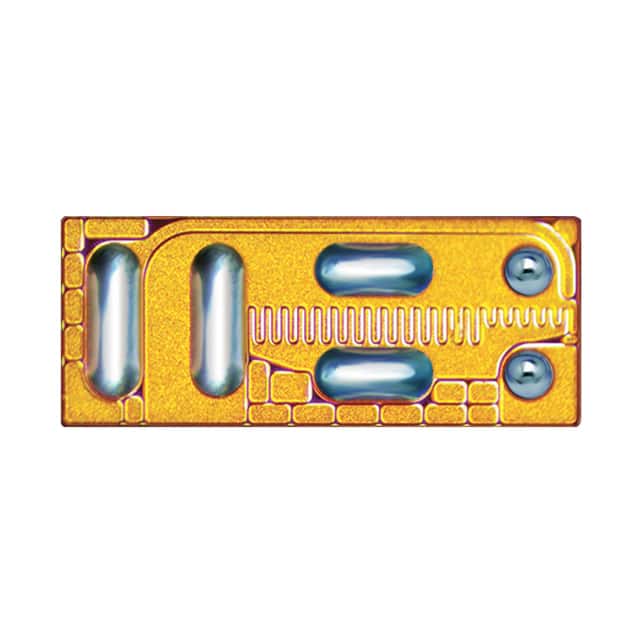

GANFET N-CH 40V 4A DIE

Stock on Request

EPC8004 Description

Short technical summary and product information.

GANFET N-CH 40V 4A DIE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	EPC
Current	4A (Ta)
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	5V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	0.45 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds	52 pF @ 20 V
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs	110mOhm @ 500mA, 5V
Supplier Device Package	Die
Technology	GaNFET (Gallium Nitride)
Vgs (Max)	+6V, -4V
Vgs(th) (Max) @ Id	2.5V @ 250µA
