Mfr Part #:

EPC23102ENGRT

Name: EPC23102ENGRT
Brand: EPC
SKU: EPC23102ENGRT

Mfr Name: EPC

Description:

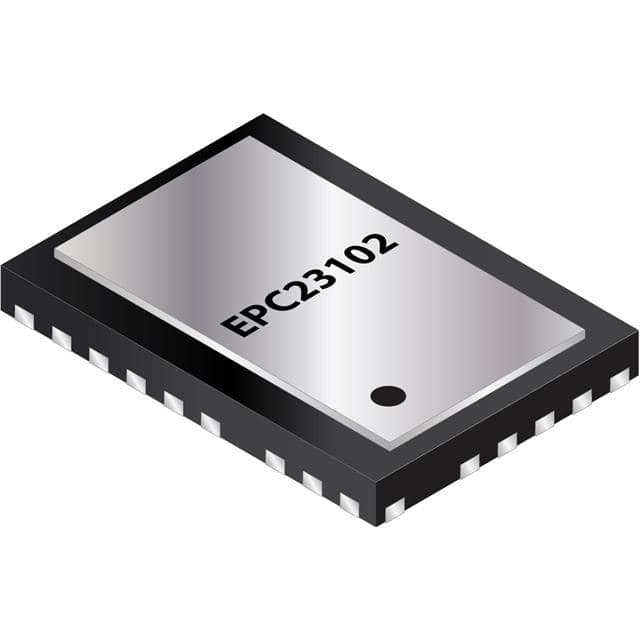

IC HALF BRIDGE DRIVER 35A 13WQFN

Stock on Request

EPC23102ENGRT Description

Short technical summary and product information.

IC HALF BRIDGE DRIVER 35A 13WQFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Full Half-Bridge Drivers
Manufacturer Name	EPC
Applications	AC Motors, DC Motors, DC-DC Converters, General Purpose
Current	35A
Fault Protection	Current Limiting, ESD, Over Voltage, UVLO
Features	Bootstrap Circuit
Interface	Logic, PWM
Load Type	Inductive, Capacitive, Resistive
Mounting Type	Surface Mount, Wettable Flank
Operating Temperature	-40°C ~ 125°C (TJ)
Output Configuration	Half Bridge
Rds On (Typ)	5.2mOhm LS, 5.2mOhm HS
Supplier Device Package	13-WQFN-HR (3.5x5)
Technology	NMOS
Voltage	10V ~ 80V
