| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Termination Style | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The EPC2212 is an enhancement mode Gallium Nitride FET (GaNFET) from EPC, rated for a maximum drain-source voltage of 100V and continuous drain current of 18A at 25°C. It leverages GaN technology to achieve ultra-low on-resistance and gate charge, enabling high-efficiency power conversion.
Key electrical specifications include a maximum on-resistance of 13.5mΩ at Vgs=5V and Id=11A, a typical gate charge of 4nC, and input capacitance of 407pF. The device operates over a junction temperature range of -55°C to 150°C and features a gate threshold voltage of 0.7V to 2.5V.

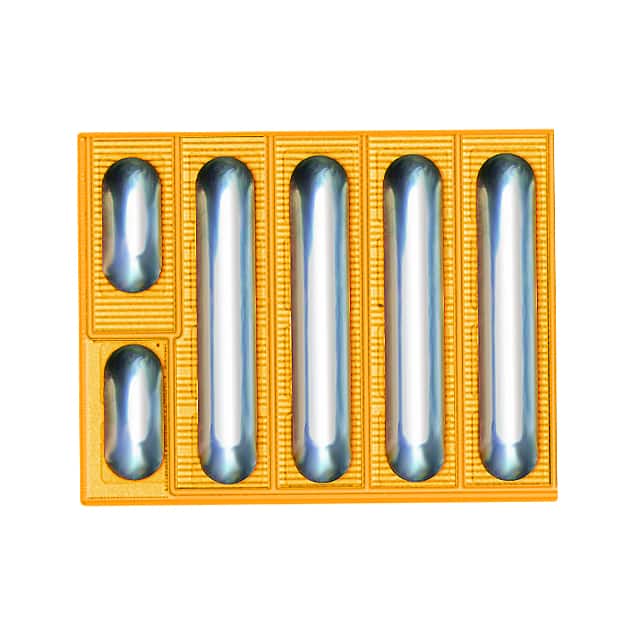

The EPC2212 is supplied as a passivated die with solder bars for surface mount assembly. The die measures 2.1 x 1.6 mm. Thermal resistance is 2°C/W junction-to-case and 69°C/W junction-to-ambient (on 1 sq in copper pad).
Typical applications include high-frequency DC-DC converters, LiDAR pulsed power systems, class-D audio amplifiers, and high-intensity headlamps. The device is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.21 | $4.21 |
| 10+ | $2.76 | $2.76 |
| 50+ | $2.14 | $2.14 |
| 100+ | $1.94 | $1.94 |
| 500+ | $1.62 | $1.62 |
| 2,500+ | $1.35 | $1.35 |
| 7,500+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 100V.
The continuous drain current is 18A at 25°C.
It is supplied as a passivated die with solder bars for surface mount.
The junction operating temperature range is -55°C to 150°C.
It is listed as RoHS3 compliant, but this is unverified.
The gate threshold voltage is 0.7V typical, 1.0V typical, and 2.5V maximum at Id=3mA.
The drain-source on-resistance is 10mΩ typical and 13.5mΩ maximum at Vgs=5V and Id=11A.
