| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
899 pcs
|
899 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The EPC2019 is an enhancement-mode N-Channel Gallium Nitride (GaN) FET from EPC, designed for high-efficiency power conversion. It offers a maximum drain-source voltage of 200V and a continuous drain current of 8.5A at 25°C. The typical on-resistance is 22mOhm, with a maximum of 42mOhm at 7A and 5V gate drive.
This GaNFET features ultra-low gate charge (2.9nC max) and zero reverse recovery charge, enabling high-frequency switching with minimal losses. The gate threshold voltage ranges from 0.8V typical to 2.5V maximum, with a recommended drive voltage of 5V (negative voltage not required).

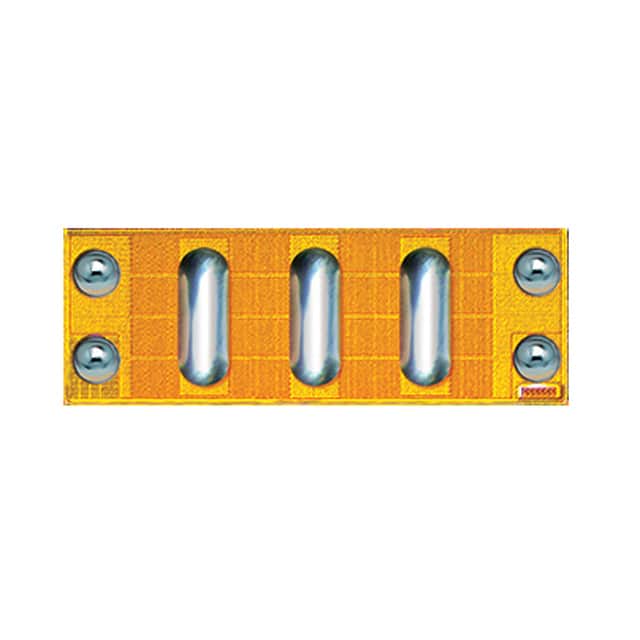

The device is supplied in a bare die form with solder bars, suitable for surface mount assembly. The die size is 2.77 x 0.95 mm. The top of the FET is electrically connected to the source. Thermal resistance junction-to-case is 2.7°C/W typical, and junction-to-ambient is 72°C/W when mounted on one square inch of copper on FR4.
Applications include high-speed DC-DC conversion, Class-D audio amplifiers, and high-frequency hard-switching or soft-switching circuits. The operating junction temperature range is -40°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.31 | $5.31 |
| 10+ | $3.52 | $3.52 |
| 50+ | $2.76 | $2.76 |
| 100+ | $2.51 | $2.51 |
| 500+ | $2.22 | $2.22 |
| 1,000+ | $1.94 | $1.94 |
| 3,000+ | $1.81 | $1.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous drain-source voltage is 200V, and up to 240V for 10,000 5ms pulses at 150°C.
The EPC2019 is supplied as a bare die for surface mount assembly.
The operating junction temperature range is -40°C to 150°C.
The EPC2019 is listed as RoHS3 compliant, but this is unverified data.
The maximum continuous drain current is 8.5A at 25°C with RθJA of 18°C/W.
The typical gate threshold voltage is 1.4V at Id = 1.5mA, with a minimum of 0.8V and maximum of 2.5V.
