Mfr Part #:

EP9315-CBZ

The Cirrus Logic EP9315-CBZ is a System-on-Chip processor with an ARM920T core operating at 200MHz. It features 16KB instruction and data caches.

✓ Total Stock: 4,857 pcs

EP9315-CBZ Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	2,742 pcs On Request	2742 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	2,110 pcs On Request	2110 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Hybrid Electronics ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

EP9315-CBZ Description

Short technical summary and product information.

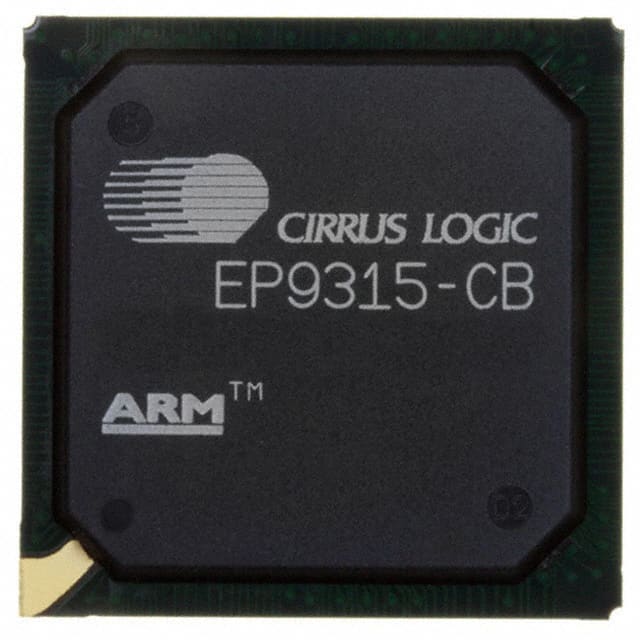

The Cirrus Logic EP9315-CBZ is an enhanced universal platform System-on-Chip (SoC) processor based on the ARM920T core. It operates at a speed of 200MHz and includes 16 kbyte instruction cache and 16 kbyte data cache.

This SoC is designed with a rich set of integrated peripherals, including a 100-MHz system bus, MaverickCrunch™ math engine, and support for Linux® and Microsoft® Windows® CE-enabled MMU. It offers extensive connectivity options such as 1/10/100-Mbps Ethernet MAC, three UARTs, three-port USB 2.0 Full-speed Host, SDRAM interface, EIDE, PCMCIA, and LCD/Raster interface with graphics acceleration.

The EP9315-CBZ is packaged in a 352-pin PBGA and is suitable for applications like thin client computers, internet radio, industrial computers, and specialized terminals. It operates within a temperature range of 0°C to 70°C (TA) and utilizes a voltage range of 1.8V and 3.3V.

EP9315-CBZ Quick Information

Product Type: System-on-Chip Processor

Canonical Name: Cirrus Logic EP9315 System-on-Chip Processor

Subcategory: Microprocessors

EP9315-CBZ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

EP9315-CBZ Features

200MHz ARM920T processor core.
16 kbyte instruction and data caches.
Integrated MaverickCrunch™ math engine.
Extensive peripheral set including Ethernet and USB 2.0.
352-pin PBGA package for surface mounting.

EP9315-CBZ Applications

Ideal for thin client computers.
Suitable for internet radio devices.
Used in industrial computer applications.
Applicable for specialized terminals.

EP9315-CBZ FAQs

7 frequently asked questions generated from this part’s specifications.

What is the processor speed of the EP9315-CBZ?

The processor speed is 200MHz.

What type of processor core does the EP9315-CBZ use?

It uses an ARM920T processor core.

What are the cache sizes for the EP9315-CBZ?

It has a 16 kbyte instruction cache and a 16 kbyte data cache.

What is the operating temperature range for this SoC?

The operating temperature range is 0°C to 70°C (TA).

What package type is the EP9315-CBZ in?

The EP9315-CBZ is in a 352-PBGA package.

Does the EP9315-CBZ have graphics acceleration?

Yes, it features graphics acceleration.

What are the security features of the EP9315-CBZ?

It includes Hardware ID security features.

Category	Microprocessors
Manufacturer Name	Cirrus Logic Inc.
Co	Math Engine; MaverickCrunch™
Core Processor	ARM920T
Display & Interface Controllers	Keypad, LCD, Touchscreen
Ethernet	1/10/100Mbps (1)
Graphics Acceleration	Yes
Lead Spacing	27 mm
Mounting Type	Surface Mount
Number of Cores	1 Core
Operating Temperature	[{'min_value': 0, 'max_value': 70, 'unit': '°C', 'display_value': '0°C ~ 70°C (TA)'}]
Operating Voltage	[{'min_value': 1.8, 'max_value': 3.3, 'unit': 'V', 'display_value': '1.8V, 3.3V'}]
RAM Controllers	SDRAM
Security Features	Hardware ID
Speed	200MHz
Supplier Device Package	352-PBGA (27x27)
Supplier Package	352-PBGA (27x27)
Tape & Reel	No
USB	USB 2.0 (3)
Voltage	1.8V, 3.3V
Watchdog Timer	Yes
