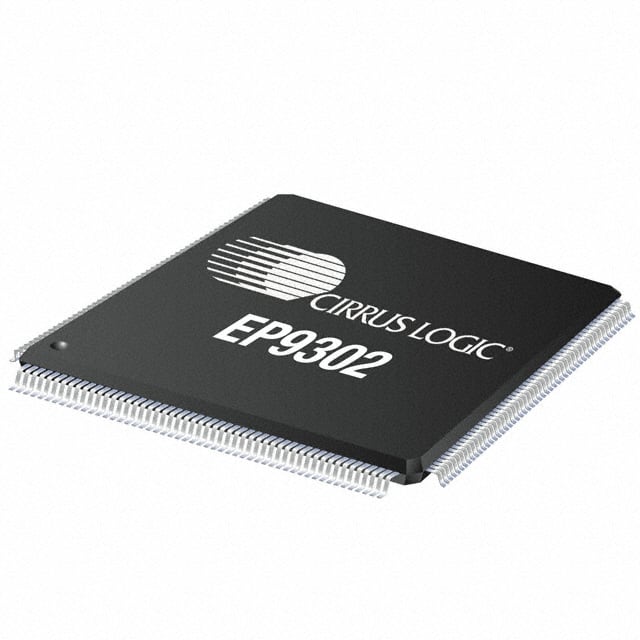

EP9302-CQZ The Cirrus Logic EP9302-CQZ is a high-speed ARM9 System-on-chip processor. It features a 200MHz ARM920T core with integrated caches and a MaverickCrunch math engine.
Mfr Part #:

EP9302-CQZ

Available from 1 distributors
Mfr Name: Cirrus Logic Inc.
Cirrus Logic Inc.
The Cirrus Logic EP9302-CQZ is a high-speed ARM9 System-on-chip processor. It features a 200MHz ARM920T core with integrated caches and a MaverickCrunch math engine.
✓ Total Stock: 2,293 pcs

EP9302-CQZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,293 pcs
On Request
2293 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP9302-CQZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Co
Core Processor
Ethernet
Graphics Acceleration
Mounting Type
Number of Cores
Operating Temperature
RAM Controllers
Security Features
Speed
Supplier Device Package
Supplier Package
Tape & Reel
USB
Voltage
View Similar Products (0)

EP9302-CQZ Description

Short technical summary and product information.

The Cirrus Logic EP9302-CQZ is a high-speed ARM9 System-on-chip processor based on the ARM920T core, operating at 200MHz. It includes 16 kbyte instruction and 16 kbyte data caches, supporting Linux and Windows CE-enabled MMUs. The processor is augmented by the MaverickCrunch™ co-processor, optimized for digital music compression and decompression algorithms, and features MaverickKey™ unique hardware programmed IDs for security.



Integrated peripherals include a 1/10/100 Mbps Ethernet MAC, two UARTs with IrDA support, two-port USB 2.0 Full-speed Host, SDRAM interface, SRAM/FLASH/ROM interface, and a 6-channel Serial Audio Interface (I2S). It also offers 12 DMA channels, a watchdog timer, and general-purpose timers.



This device is housed in a 208-pin LQFP package and is designed for surface mount applications. It operates within a temperature range of 0°C to 70°C (TA) and utilizes dual voltage supplies of 1.8V and 3.3V.



The EP9302 is targeted for a variety of applications including industrial controls, digital media servers, integrated home media gateways, digital audio jukeboxes, streaming audio players, set-top boxes, and point-of-sale terminals.

EP9302-CQZ Quick Information

Product Type: Microprocessor
Canonical Name: EP9302-CQZ ARM920T Microprocessor
Subcategory: Embedded Processors

EP9302-CQZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP9302-CQZ Features

  • 200MHz ARM920T processor core.
  • Integrated 16KB instruction and data caches.
  • MaverickCrunch™ math co-processor included.
  • 1/10/100 Mbps Ethernet and USB 2.0 interfaces.
  • 208-pin LQFP surface mount package.

EP9302-CQZ Applications

  • Suitable for industrial control systems.
  • Ideal for digital media servers.
  • Used in home media gateways.
  • Applicable for digital audio jukeboxes.
  • Designed for streaming audio players.

EP9302-CQZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the clock speed of the EP9302-CQZ?

The EP9302-CQZ has a clock speed of 200 MHz.

What type of processor core does the EP9302-CQZ use?

The EP9302-CQZ uses an ARM920T processor core.

What are the operating voltage requirements for the EP9302-CQZ?

The EP9302-CQZ operates at 1.8V and 3.3V.

What is the operating temperature range for the EP9302-CQZ?

The operating temperature range for the EP9302-CQZ is 0°C to 70°C (TA).

What package type is the EP9302-CQZ supplied in?

The EP9302-CQZ is supplied in a 208-LQFP package.

Does the EP9302-CQZ have Ethernet connectivity?

Yes, the EP9302-CQZ features 1/10/100Mbps Ethernet connectivity.

What security features are included in the EP9302-CQZ?

The EP9302-CQZ includes Hardware ID security features.
