| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,096 pcs
|
1096 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Processor | |
| Ethernet | |
| Graphics Acceleration | |
| Mounting Type | |
| Number of Cores | |
| Operating Temperature | |
| RAM Controllers | |
| Security Features | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| USB | |
| Voltage | |
| Watchdog Timer |

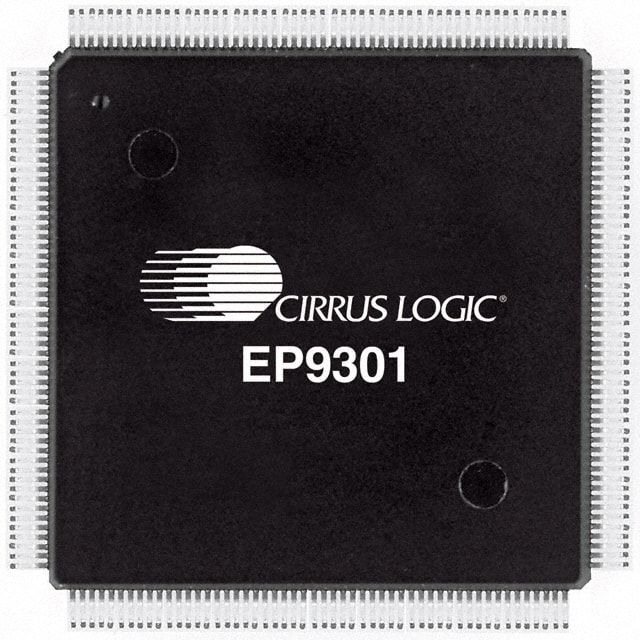

The Cirrus Logic EP9301-CQZ is an entry-level ARM9 System-on-Chip processor based on the ARM920T core. It operates at 166MHz and features a 32-bit data bus width. This processor includes integrated peripheral interfaces such as a 1/10/100 Mbps Ethernet MAC, two-port USB 2.0 Full-speed Host, two UARTs, and an IrDA interface.
Key internal peripherals include 12 Direct Memory Access (DMA) channels, a Real-time Clock, Watchdog Timer, and multiple general-purpose timers. It supports SDRAM interfaces and has integrated instruction and data caches, each 16 kbyte. The EP9301-CQZ is supplied in a 208-pin LQFP package and is designed for surface mounting.
This SoC is targeted for applications including industrial controls, digital media servers, home media gateways, digital audio jukeboxes, streaming audio players, set-top boxes, point-of-sale terminals, thin clients, biometric security systems, and GPS & fleet management systems.
The core processor is ARM920T.
The clock speed is 166 MHz.
The package is 208-LQFP.
The operating temperature range is 0°C ~ 70°C (TA).
Yes, it features a 1/10/100Mbps Ethernet MAC.
It supports USB 2.0 with two ports.
It integrates SDRAM controllers.
