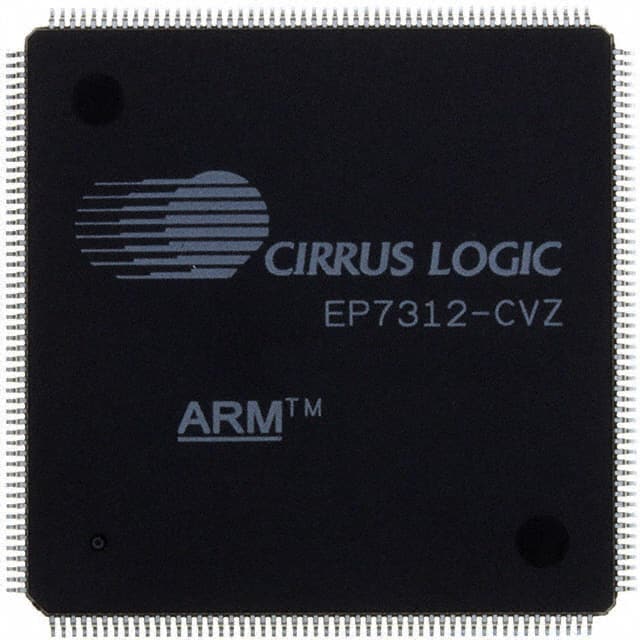

EP7312-CVZ The Cirrus Logic EP7312-CVZ is a high-performance, low-power microprocessor based on the ARM7TDMI core, operating at 74MHz. It features integrated SDRAM controllers and advanced audio capabilities.
Mfr Part #:

EP7312-CVZ

Available from 2 distributors
Mfr Name: Cirrus Logic Inc.
Cirrus Logic Inc.
The Cirrus Logic EP7312-CVZ is a high-performance, low-power microprocessor based on the ARM7TDMI core, operating at 74MHz. It features integrated SDRAM controllers and advanced audio capabilities.
✓ Total Stock: 2,175 pcs

EP7312-CVZ Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
1,175 pcs
On Request
1175 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request 06+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP7312-CVZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Core Processor
Display & Interface Controllers
Graphics Acceleration
Lead Spacing
Mounting Type
Number of Cores
Operating Temperature
RAM Controllers
Security Features
Speed
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

EP7312-CVZ Description

Short technical summary and product information.

The Cirrus Logic EP7312-CVZ is a System on Chip (SoC) designed for ultra-low-power portable and line-powered applications. It is built around an ARM7TDMI CPU core capable of operating at speeds of 74 MHz and 90 MHz. The processor includes 8 KBytes of four-way set-associative cache and an enhanced memory management unit (MMU) that supports sophisticated operating systems like Windows CE and Linux.



Key features include 48 KBytes of on-chip SRAM, advanced audio decoder/decompression capabilities supporting multiple algorithms (MP3, WMA, AAC, Audible), and an LCD controller. It offers integrated peripheral interfaces such as SDRAM, SRAM/FLASH/ROM, Digital Audio Interface, two Synchronous Serial Interfaces (SSI), a CODEC Sound Interface, keypad scanner, and 27 General Purpose Input/Output pins. Internal peripherals include two 16550 compatible UARTs with IrDA support, two PWM interfaces, a Real-Time Clock, and two general-purpose 16-bit timers.



The EP7312-CVZ is supplied in a 208-LQFP package and is designed for surface mounting. It operates within a temperature range of 0°C to 70°C and supports a wide voltage range from 2.5V to 3.3V. Its ultra-low power consumption makes it suitable for battery-powered devices.

EP7312-CVZ Quick Information

Product Type: Microprocessor
Canonical Name: EP7312 Microprocessor
Subcategory: System on Chip (SoC)

EP7312-CVZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP7312-CVZ Features

  • ARM7TDMI core operating at 74MHz
  • 8KB cache and 48KB on-chip SRAM
  • Advanced digital audio decoder/decompression
  • Integrated LCD controller and keypad interface
  • Low power consumption for portable devices

EP7312-CVZ Applications

  • Portable consumer entertainment devices
  • Home and car audio juke box systems
  • General purpose industrial control
  • Devices with digital audio compression

EP7312-CVZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor of the EP7312-CVZ?

The core processor is ARM7TDMI.

What is the operating speed of the EP7312-CVZ?

The processor operates at 74MHz.

What is the package type for the EP7312-CVZ?

The package type is 208-LQFP.

What is the operating temperature range for this microprocessor?

The operating temperature range is 0°C to 70°C.

What are the voltage requirements for the EP7312-CVZ?

The operating voltage range is 2.5V, 2.7V, 3.0V, and 3.3V.

Does the EP7312-CVZ have integrated cache and SRAM?

Yes, it features 8KB of cache and 48KB of on-chip SRAM.

What audio capabilities does the EP7312-CVZ offer?

It has advanced audio decoder/decompression capability supporting multiple algorithms like MP3, WMA, AAC, and Audible.
