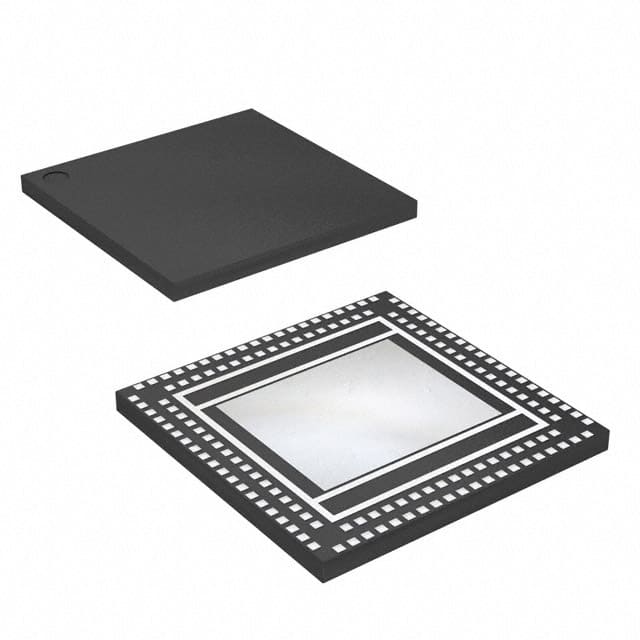

EP4CGX15BN11C8N The Intel EP4CGX15BN11C8N is an FPGA with 14400 logic elements and 72 I/O pins. It features 552960 total RAM bits and operates within a voltage range of 1.16V to 1.24V.
Mfr Part #:

EP4CGX15BN11C8N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EP4CGX15BN11C8N is an FPGA with 14400 logic elements and 72 I/O pins. It features 552960 total RAM bits and operates within a voltage range of 1.16V to 1.24V.
✓ Total Stock: 6,898 pcs

EP4CGX15BN11C8N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,898 pcs
On Request
6898 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP4CGX15BN11C8N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Lead Spacing
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Operating Voltage
Supplier Device Package
Total RAM Bits
Voltage
View Similar Products (0)

EP4CGX15BN11C8N Description

Short technical summary and product information.

This Intel EP4CGX15BN11C8N is a Field Programmable Gate Array (FPGA) from the Cyclone IV GX series. It offers 14,400 logic elements and 900 LABs/CLBs, providing substantial capacity for custom logic designs.



The device includes 72 programmable I/O pins and 552,960 bits of on-chip RAM, supporting complex interface requirements and data storage. It operates within a voltage supply range of 1.16V to 1.24V and has an operating temperature range of 0°C to 85°C (TJ).



Designed for surface mounting, this FPGA comes in a 148-WFQFN Dual Rows, Exposed Pad package, with a supplier device package specified as 148-QFN (11x11). The Cyclone IV GX series is known for supporting moderate-density logic and integrated transceivers for high-speed serial communication.



Common applications for this FPGA include embedded control systems, industrial automation, consumer electronics, networking equipment, custom hardware accelerators, communication systems, test and measurement devices, and data processing units.

EP4CGX15BN11C8N Quick Information

Product Type: FPGA
Series: Cyclone IV GX
Canonical Name: Intel EP4CGX15BN11C8N FPGA
Subcategory: Field Programmable Gate Array

EP4CGX15BN11C8N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP4CGX15BN11C8N Features

  • 14400 logic elements for customizable logic.
  • 72 programmable input/output pins.
  • 552960 bits of on-chip RAM.
  • Operates from 1.16V to 1.24V.
  • Surface mountable 148-WFQFN package.

EP4CGX15BN11C8N Applications

  • Used in embedded control systems.
  • Suitable for industrial automation.
  • Applied in consumer electronics.
  • Features in networking equipment.
  • Supports custom hardware accelerators.

EP4CGX15BN11C8N FAQs

5 frequently asked questions generated from this part’s specifications.
What are the key electrical specifications for the EP4CGX15BN11C8N FPGA?

The EP4CGX15BN11C8N FPGA features 14400 logic elements, 900 LABs/CLBs, 552960 total RAM bits, and 72 I/O pins. It operates within a voltage range of 1.16V to 1.24V.

What is the operating temperature range for this Intel FPGA?

The operating temperature range for the EP4CGX15BN11C8N FPGA is 0°C to 85°C (TJ).

What package type is the EP4CGX15BN11C8N FPGA supplied in?

The EP4CGX15BN11C8N FPGA is supplied in a 148-WFQFN Dual Rows, Exposed Pad package, with a supplier device package of 148-QFN (11x11). It is a surface mount device.

What is the RoHS status of the EP4CGX15BN11C8N?

The RoHS status for the EP4CGX15BN11C8N is listed as RoHS3 Compliant in the database, but non-compliant on the manufacturer page.

What is the Moisture Sensitivity Level (MSL) for this FPGA?

The Moisture Sensitivity Level (MSL) for the EP4CGX15BN11C8N is 1 Unlimited.
