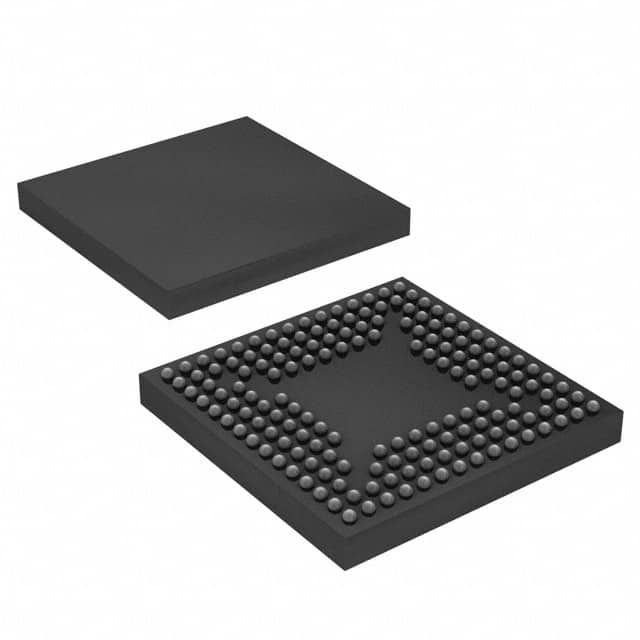

EP3C5M164C8N The Intel EP3C5M164C8N is an FPGA with 5136 logic elements and 106 I/O pins. It features a 164-MBGA package and operates at 1.15V to 1.25V.
Mfr Part #:

EP3C5M164C8N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EP3C5M164C8N is an FPGA with 5136 logic elements and 106 I/O pins. It features a 164-MBGA package and operates at 1.15V to 1.25V.
✓ Total Stock: 5,800 pcs

EP3C5M164C8N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,800 pcs
On Request
5800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP3C5M164C8N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Total RAM Bits
Voltage
View Similar Products (0)

EP3C5M164C8N Description

Short technical summary and product information.

The Intel EP3C5M164C8N is a Field Programmable Gate Array (FPGA) from the Cyclone III family. It offers 5136 logic elements and 321 LABs, providing significant logic capacity for complex designs. This device includes 423936 total RAM bits for on-chip memory.



With 106 I/O pins, the EP3C5M164C8N facilitates extensive interfacing capabilities. It operates within a voltage range of 1.15V to 1.25V and has an operating temperature range of 0°C to 85°C (TJ). The FPGA is housed in a 164-MBGA (8x8) package and is designed for surface mounting.



The Cyclone III family is known for its combination of high functionality, low power consumption, and cost-effectiveness, making it suitable for high-volume applications. These devices are built on TSMC's low-power process technology, optimized for minimal power usage.

EP3C5M164C8N Quick Information

Product Type: FPGA
Series: Cyclone III
Canonical Name: EP3C5M164C8N FPGA
Subcategory: Field Programmable Gate Array

EP3C5M164C8N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP3C5M164C8N Features

  • 5136 logic elements for complex designs.
  • 106 I/O pins for extensive interfacing.
  • 423936 total RAM bits on-chip.
  • 1.15V to 1.25V operating voltage.
  • 164-MBGA surface mount package.

EP3C5M164C8N Applications

  • Suitable for high-density FPGA logic applications.
  • Ideal for embedded control systems.
  • Used in data processing and signal routing.
  • Applicable in low-power portable devices.
  • Suitable for complex digital circuit implementations.

EP3C5M164C8N FAQs

6 frequently asked questions generated from this part’s specifications.
How many logic elements does the EP3C5M164C8N FPGA have?

The EP3C5M164C8N FPGA has 5136 logic elements.

What is the total RAM bit count for the EP3C5M164C8N?

The EP3C5M164C8N has a total of 423936 RAM bits.

How many I/O pins are available on the EP3C5M164C8N?

The EP3C5M164C8N features 106 I/O pins.

What is the operating voltage range for the EP3C5M164C8N?

The operating voltage for the EP3C5M164C8N is between 1.15V and 1.25V.

What type of package is the EP3C5M164C8N in?

The EP3C5M164C8N is in a 164-MBGA (8x8) package designed for surface mounting.

What is the operating temperature range for this FPGA?

The operating temperature range for the EP3C5M164C8N is 0°C to 85°C (TJ).
