EP3C55F484C6N The Intel EP3C55F484C6N is a Field Programmable Gate Array (FPGA) with 55,856 logic elements and 327 I/O pins. It operates on a voltage range of 1.15V to 1.25V.
Mfr Part #:

EP3C55F484C6N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EP3C55F484C6N is a Field Programmable Gate Array (FPGA) with 55,856 logic elements and 327 I/O pins. It operates on a voltage range of 1.15V to 1.25V.
✓ Total Stock: 10,000 pcs

EP3C55F484C6N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP3C55F484C6N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Supplier Package
Total RAM Bits
Voltage
View Similar Products (0)

EP3C55F484C6N Description

Short technical summary and product information.

The Intel EP3C55F484C6N is a high-functionality, low-power FPGA from the Cyclone III family. It features 55,856 logic elements and 3,491 LABs, providing significant processing capability.



This FPGA offers 2,396,160 total RAM bits and supports 327 I/O pins, making it suitable for complex digital designs. It operates within a voltage range of 1.15V to 1.25V and has an operating temperature range of 0°C to 85°C (TJ).

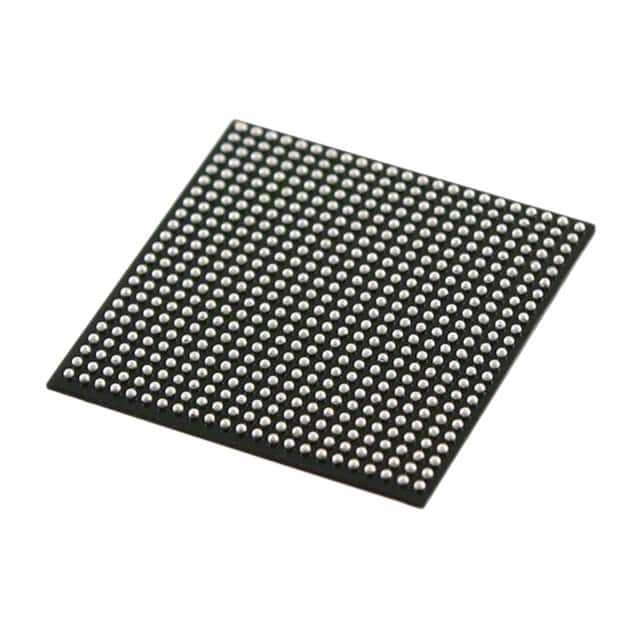

The device is available in a 484-FBGA (23x23) package and utilizes surface mount technology. Its low-power characteristics, derived from TSMC's low-power process technology, make it an ideal solution for high-volume, cost-sensitive applications where power consumption is a critical factor.



The Cyclone III family is designed for applications requiring a balance of performance, power efficiency, and cost. The EP3C55F484C6N specifically offers a robust feature set for various embedded systems and digital logic implementations.

EP3C55F484C6N Quick Information

Product Type: FPGA
Canonical Name: Intel EP3C55F484C6N FPGA
Subcategory: Field Programmable Gate Array

EP3C55F484C6N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP3C55F484C6N Features

  • 55,856 logic elements available.
  • 3,491 logic array blocks.
  • 2.396 Mbits of embedded memory.
  • 327 programmable I/O pins.
  • Operates at 1.15V to 1.25V.

EP3C55F484C6N Applications

  • Suitable for high-volume applications.
  • Ideal for low-power designs.
  • Cost-sensitive application solutions.
  • Embedded system implementations.

EP3C55F484C6N FAQs

5 frequently asked questions generated from this part’s specifications.
What is the logic element count for the EP3C55F484C6N FPGA?

The EP3C55F484C6N FPGA has 55,856 logic elements.

How many I/O pins does the EP3C55F484C6N have?

The EP3C55F484C6N has 327 I/O pins.

What is the operating voltage range for the EP3C55F484C6N?

The operating voltage range for the EP3C55F484C6N is 1.15V to 1.25V.

What is the package type for the EP3C55F484C6N?

The EP3C55F484C6N is available in a 484-BGA package.

What is the operating temperature of the EP3C55F484C6N?

The operating temperature for the EP3C55F484C6N is 0°C to 85°C (TJ).
