EP3C120F484C8N The Intel EP3C120F484C8N is a high-performance FPGA from the Cyclone III series. It features 119,088 logic elements and 283 I/O pins.
Mfr Part #:

EP3C120F484C8N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EP3C120F484C8N is a high-performance FPGA from the Cyclone III series. It features 119,088 logic elements and 283 I/O pins.
✓ Total Stock: 10,000 pcs

EP3C120F484C8N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP3C120F484C8N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage
View Similar Products (0)

EP3C120F484C8N Description

Short technical summary and product information.

The Intel EP3C120F484C8N is a Field Programmable Gate Array (FPGA) belonging to the Cyclone III family. This device offers a substantial logic capacity with 119,088 logic elements and 7,443 Logic Array Blocks (LABs), making it suitable for complex digital designs.



It provides 283 input/output (I/O) pins for interfacing with other system components. The FPGA includes 3,981,312 RAM bits for data storage and processing tasks. It operates within a supply voltage range of 1.15V to 1.25V and has an operating temperature range of 0°C to 85°C (TJ).

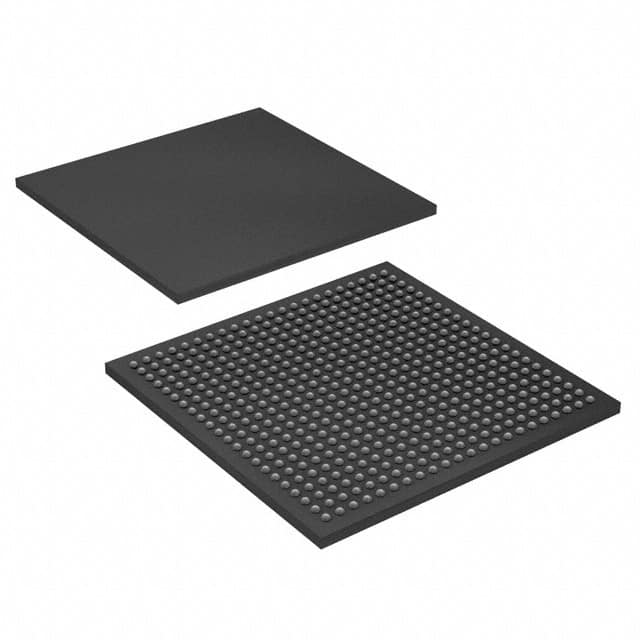

The EP3C120F484C8N is packaged in a 484-FBGA (23x23 mm) format and utilizes surface-mount technology for integration into printed circuit boards. This FPGA is designed for applications requiring high logic density and flexibility, such as telecommunications, industrial automation, and consumer electronics.

EP3C120F484C8N Quick Information

Product Type: FPGA
Series: Cyclone III
Canonical Name: Intel EP3C120F484C8N FPGA
Subcategory: Field Programmable Gate Array

EP3C120F484C8N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP3C120F484C8N Features

  • 119,088 logic elements for complex designs.
  • 283 I/O pins for system connectivity.
  • 3,981,312 RAM bits for data storage.
  • Operates at 1.15V to 1.25V supply voltage.
  • Surface mount 484-FBGA package.

EP3C120F484C8N Applications

  • Used in telecommunications infrastructure.
  • Suitable for industrial automation systems.
  • Integrated into consumer electronics devices.
  • Applied in medical diagnostic equipment.
  • Employed in automotive infotainment systems.

EP3C120F484C8N FAQs

5 frequently asked questions generated from this part’s specifications.
How many logic elements does the EP3C120F484C8N FPGA have?

The EP3C120F484C8N FPGA has 119,088 logic elements.

What is the I/O count for the EP3C120F484C8N?

The EP3C120F484C8N features 283 I/O pins.

What is the operating voltage range for the EP3C120F484C8N?

The operating voltage range for the EP3C120F484C8N is 1.15V to 1.25V.

What package type is the EP3C120F484C8N supplied in?

The EP3C120F484C8N is supplied in a 484-FBGA (23x23) package.

What is the operating temperature range for this FPGA?

The operating temperature range for the EP3C120F484C8N is 0°C to 85°C (TJ).
