EP2SGX60EF1152I4N The Intel EP2SGX60EF1152I4N is a Stratix II GX FPGA featuring 534 I/O pins and 60440 logic elements. It operates within a voltage range of 1.15V to 1.25V.
Mfr Part #:

EP2SGX60EF1152I4N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EP2SGX60EF1152I4N is a Stratix II GX FPGA featuring 534 I/O pins and 60440 logic elements. It operates within a voltage range of 1.15V to 1.25V.
✓ Total Stock: 6,898 pcs

EP2SGX60EF1152I4N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,898 pcs
On Request
6898 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP2SGX60EF1152I4N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Total RAM Bits
Voltage
View Similar Products (0)

EP2SGX60EF1152I4N Description

Short technical summary and product information.

The Intel EP2SGX60EF1152I4N is a member of the Stratix II GX family of FPGAs, designed for high-performance logic array applications. This device offers 534 I/O pins and 60440 logic elements, with a total of 2,544,192 RAM bits. It operates at a voltage range of 1.15V to 1.25V and has an operating temperature range of -40°C to 100°C (TJ).



Built on the Stratix II architecture, this FPGA is suitable for high-speed backplane interfaces, chip-to-chip communication, and protocol-bridging applications. The Stratix II GX devices incorporate high-speed serial transceivers with clock and data recovery unit (CRU) technology and embedded SERDES capability.

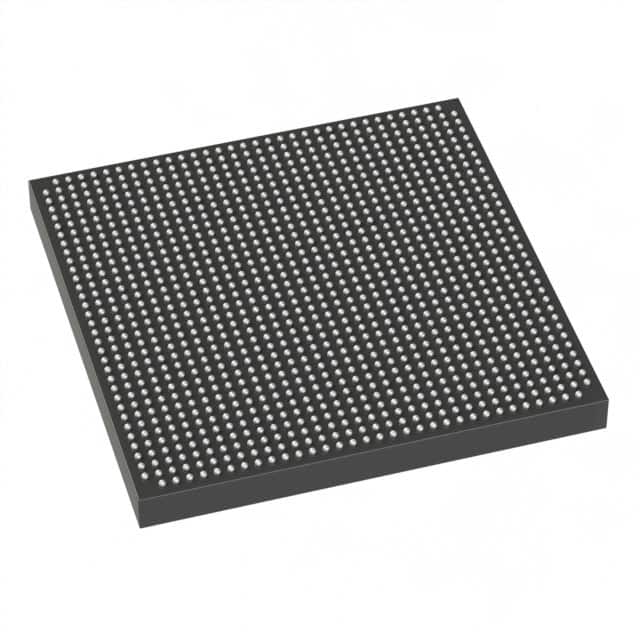

The EP2SGX60EF1152I4N comes in an 1152-FBGA (35x35) package and is designed for surface mounting. Its features include TriMatrix memory, global and regional clock networks, high-speed DSP blocks, and enhanced PLLs, providing flexibility and performance for complex designs.

EP2SGX60EF1152I4N Quick Information

Product Type: FPGA
Series: Stratix II GX
Canonical Name: Intel Stratix II GX FPGA
Subcategory: Field Programmable Gate Array

EP2SGX60EF1152I4N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP2SGX60EF1152I4N Features

  • FPGA with 60440 logic elements.
  • Features 534 I/O pins.
  • Operates at 1.15V to 1.25V.
  • Surface mountable 1152-FBGA package.
  • Wide operating temperature range.

EP2SGX60EF1152I4N Applications

  • Ideal for high-speed backplane interfaces.
  • Suitable for chip-to-chip communication.
  • Used in communications protocol bridging.
  • Supports embedded SERDES capability.

EP2SGX60EF1152I4N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the EP2SGX60EF1152I4N?

The operating temperature range is -40°C to 100°C (TJ).

How many I/O pins does the EP2SGX60EF1152I4N have?

The EP2SGX60EF1152I4N has 534 I/O pins.

What is the operating voltage for this FPGA?

The operating voltage is between 1.15V and 1.25V.

What package type is the EP2SGX60EF1152I4N supplied in?

It is supplied in an 1152-FBGA (35x35) package.

What is the total RAM bit count for the EP2SGX60EF1152I4N?

The total RAM bits are 2,544,192.

How many logic elements are in the EP2SGX60EF1152I4N?

The EP2SGX60EF1152I4N contains 60,440 logic elements.
