| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Storage Temperature | |
| Tape & Reel |

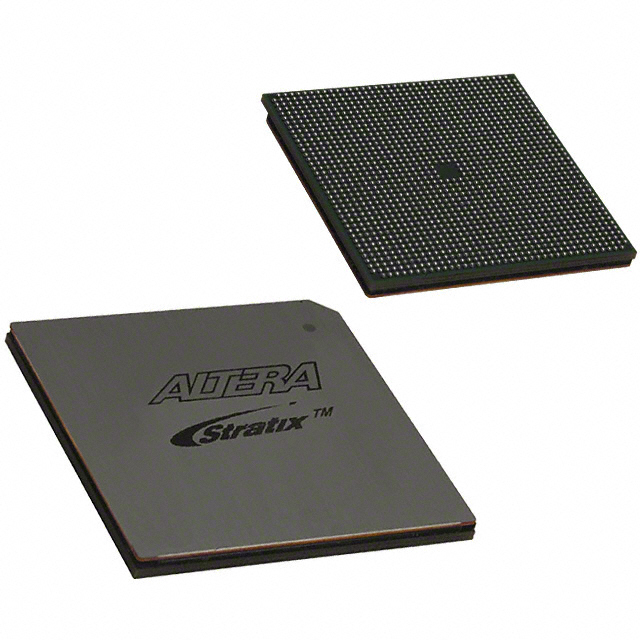

The Altera EP2SGX130GF1508I4N is an Integrated Circuit Field Programmable Gate Array (FPGA) belonging to the Stratix II GX family. This device offers a high logic density with 132,540 logic elements/cells and 6,627 Logic Array Blocks (LABs)/Configurable Logic Blocks (CLBs).
It provides substantial memory capacity with 6,747,840 bits of RAM and extensive connectivity through 734 I/Os. The FPGA operates within a supply voltage range of 1.15V to 1.25V, designed for efficient power usage. High-speed serial transceivers are also a key feature, capable of data rates up to 6.375 Gbps.
This FPGA is suitable for applications requiring high-density logic and extensive I/O capabilities, including telecommunications, networking, industrial automation, medical equipment, and military/aerospace systems. It is supplied in a surface mount FBGA1508 package.
Development tools such as Quartus II Software, SignalTap II, and Nios II Soft Processor are available from Intel to support the design and verification process for this FPGA.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.72 | $4.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EP2SGX130GF1508I4N FPGA has 132,540 logic elements or cells.
The EP2SGX130GF1508I4N FPGA has 6,747,840 bits of RAM.
The EP2SGX130GF1508I4N FPGA operates within a supply voltage range of 1.15V to 1.25V.
The EP2SGX130GF1508I4N FPGA is supplied in a Tray package and features an FBGA1508 or PBGA1508 package type.
The Moisture Sensitivity Level (MSL) for the EP2SGX130GF1508I4N is Level 3 (168 Hours).
