EP2S15F672C5N The Intel EP2S15F672C5N is a Field Programmable Gate Array (FPGA) from the Stratix II series. It features 15,600 logic elements and 366 I/O pins, operating at a clock speed of 640MHz.
Mfr Part #:

EP2S15F672C5N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EP2S15F672C5N is a Field Programmable Gate Array (FPGA) from the Stratix II series. It features 15,600 logic elements and 366 I/O pins, operating at a clock speed of 640MHz.
✓ Total Stock: 9,600 pcs

EP2S15F672C5N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
9,600 pcs
On Request
9600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP2S15F672C5N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Frequency
Lead Spacing
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage
View Similar Products (0)

EP2S15F672C5N Description

Short technical summary and product information.

The Intel EP2S15F672C5N is an IC FPGA belonging to the Stratix II family, designed for high-performance applications. This device offers a substantial 15,600 logic elements and 780 Logic Array Blocks (LABs), providing ample resources for complex digital designs. It supports 366 I/O pins, making it versatile for interfacing with various external systems.

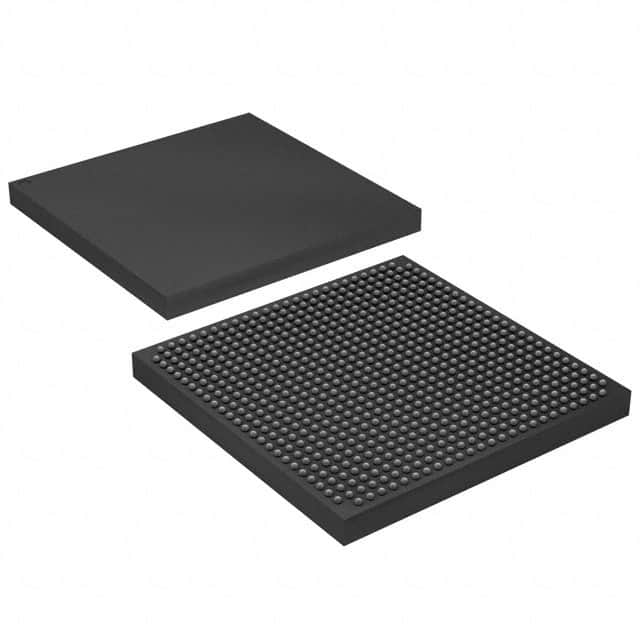

The EP2S15F672C5N operates within a supply voltage range of 1.15V to 1.25V and has a clock frequency of 640MHz. It is housed in a 672-FBGA package and is suitable for surface mounting. The operating temperature range is 0°C to 85°C (TJ).



This FPGA is well-suited for applications in telecommunications, networking, industrial automation, medical equipment, and military/aerospace sectors. Development tools such as Quartus II Software, IP Cores, Simulation Tools, and Debugging Tools are available from Intel to support its implementation.

EP2S15F672C5N Quick Information

Product Type: FPGA
Series: Stratix II
Canonical Name: EP2S15F672C5N Field Programmable Gate Array
Subcategory: Field Programmable Gate Array

EP2S15F672C5N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP2S15F672C5N Features

  • 15,600 logic elements for complex designs.
  • 780 Logic Array Blocks available.
  • 366 I/O pins for versatile interfacing.
  • Operates at 1.15V to 1.25V supply voltage.
  • 640MHz maximum clock frequency.

EP2S15F672C5N Applications

  • Ideal for telecommunications infrastructure.
  • Used in high-speed networking equipment.
  • Suitable for industrial automation systems.
  • Employed in medical imaging devices.
  • Utilized in military and aerospace applications.

EP2S15F672C5N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the logic element count for the EP2S15F672C5N FPGA?

The EP2S15F672C5N FPGA has 15,600 logic elements.

How many I/O pins does the EP2S15F672C5N have?

The EP2S15F672C5N features 366 I/O pins.

What is the operating voltage range for the EP2S15F672C5N?

The operating voltage range for the EP2S15F672C5N is 1.15V to 1.25V.

What package type is the EP2S15F672C5N supplied in?

The EP2S15F672C5N is supplied in a 672-FBGA package.

What is the maximum operating temperature for the EP2S15F672C5N?

The maximum operating temperature for the EP2S15F672C5N is 85°C (TJ).

What is the clock frequency of the EP2S15F672C5N?

The EP2S15F672C5N has a clock frequency of 640MHz.
