| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,001 pcs
|
5001 pcs | On Request | 1 | On Request | On Request | 21 | On Request | On Request | |
|
3,287 pcs
|
3287 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature |
The Intel EP2C5AF256A7N, also known as EP2C5F256C8N, is an FPGA chip from Intel's Cyclone II family. It is designed for embedded system applications requiring flexible logic design.
This FPGA features 4608 logic elements and 288 logic array blocks, providing ample resources for mid-level complexity designs. It includes 119,808 total RAM bits for fast data access and storage. The device supports up to 158 input/output pins, configurable for various communication standards.

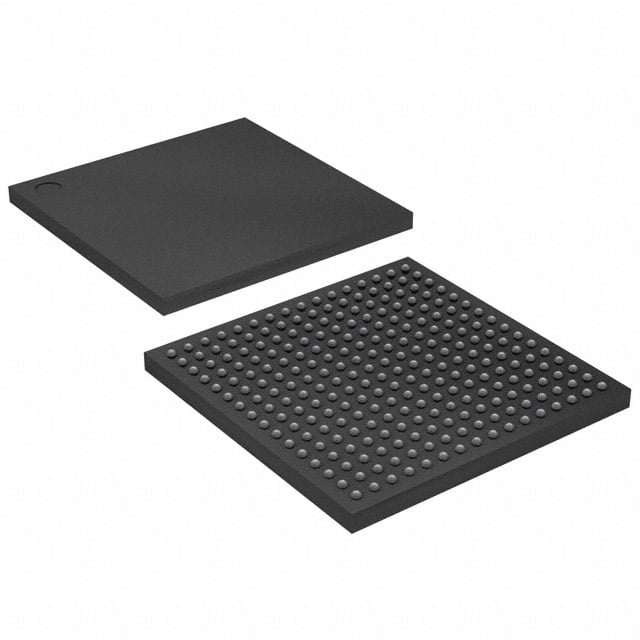

The EP2C5AF256A7N operates within a supply voltage range of 1.15V to 1.25V and can function in extreme temperatures from -40°C to 125°C (TJ). It utilizes a compact 256-ball fine-pitch BGA package (256-FBGA (17x17mm)), allowing for high-density surface mounting on smaller PCBs.
This component is suitable for applications needing customizable hardware logic that meets industrial-grade temperature and reliability standards, including industrial automation controllers, embedded communications equipment, consumer electronics, signal processing systems, medical devices, and data acquisition instruments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EP2C5F256C8N contains 4,608 logic elements.
The EP2C5F256C8N has 158 I/O pins.
The device operates from a supply voltage between 1.15V and 1.25V.
The operating junction temperature range is -40°C to 125°C.
The EP2C5F256C8N contains 288 LABs/CLBs.
The EP2C5F256C8N has 119,808 total RAM bits.
The EP2C5F256C8N is available in a 256-FBGA (17x17) surface mount package and supplied in a tray.
