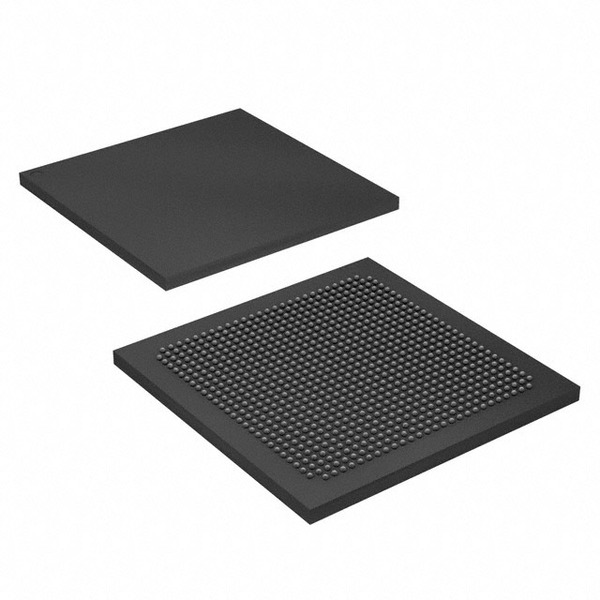

EP2AGX45DF29I3N The Altera EP2AGX45DF29I3N is an FPGA featuring 42,959 logic cells and 364 I/O pins. It operates within a 0.87V to 0.93V supply range.
Mfr Part #:

EP2AGX45DF29I3N

Available from 2 distributors
Mfr Name: Altera
Altera
The Altera EP2AGX45DF29I3N is an FPGA featuring 42,959 logic cells and 364 I/O pins. It operates within a 0.87V to 0.93V supply range.
✓ Total Stock: 6,300 pcs
$ Price Range: $4.72

EP2AGX45DF29I3N Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
6,280 pcs
On Request
6280 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request 15+/16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP2AGX45DF29I3N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of I/O
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage Supply
View Similar Products (0)

EP2AGX45DF29I3N Description

Short technical summary and product information.

This Intel Arria II GX series FPGA, part number EP2AGX45DF29I3N, offers a high logic density with 42,959 logic elements and 1,805 LABs/CLBs. It provides 3,517,440 RAM bits for data buffering and supports 364 external I/O pins.



The device operates within a voltage supply range of 0.87V to 0.93V and maintains stable performance across a junction temperature range of 0°C to 85°C. It is designed for intensive processing environments requiring reliable, low-power performance and enhanced system flexibility through its reconfigurable architecture.



Packaged in a 780-FBGA (29x29 mm) surface-mount configuration, this FPGA is optimized for integration into embedded system boards. Its robust design supports reliable electrical connections and a minimal footprint, making it suitable for applications needing frequent logic updates or customization.

EP2AGX45DF29I3N Quick Information

Product Type: FPGA
Series: Arria II GX
Canonical Name: EP2AGX45DF29I3N FPGA
Subcategory: Field Programmable Gate Array

EP2AGX45DF29I3N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP2AGX45DF29I3N Estimated Pricing

Qty Low High
1+ $4.72 $4.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

EP2AGX45DF29I3N Features

  • 42,959 logic elements/cells for complex operations.
  • 3,517,440 RAM bits for data buffering.
  • 364 external I/O pins supported.
  • 0.87V to 0.93V supply voltage range.
  • 0°C to 85°C operating temperature range.

EP2AGX45DF29I3N Applications

  • Designed for telecommunications and networking.
  • Suitable for industrial control systems.
  • Used in medical electronics applications.
  • Ideal for high-speed communication interfaces.
  • Supports data acquisition and protocol conversion.

EP2AGX45DF29I3N FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the EP2AGX45DF29I3N FPGA?

The operating voltage supply range for the EP2AGX45DF29I3N is 0.87V to 0.93V.

What is the operating temperature range of the EP2AGX45DF29I3N?

The EP2AGX45DF29I3N operates within a junction temperature range of 0°C to 85°C.

What package type is the EP2AGX45DF29I3N FPGA supplied in?

The EP2AGX45DF29I3N is supplied in a 780-FBGA (29x29 mm) surface-mount package.

How many logic elements and RAM bits does the EP2AGX45DF29I3N feature?

The EP2AGX45DF29I3N features 42,959 logic elements/cells and 3,517,440 RAM bits.

What is the I/O count for the EP2AGX45DF29I3N FPGA?

The EP2AGX45DF29I3N FPGA supports 364 external I/O pins.
