Mfr Part #:

EP2AGX45DF25C6N

Mfr Name: Altera

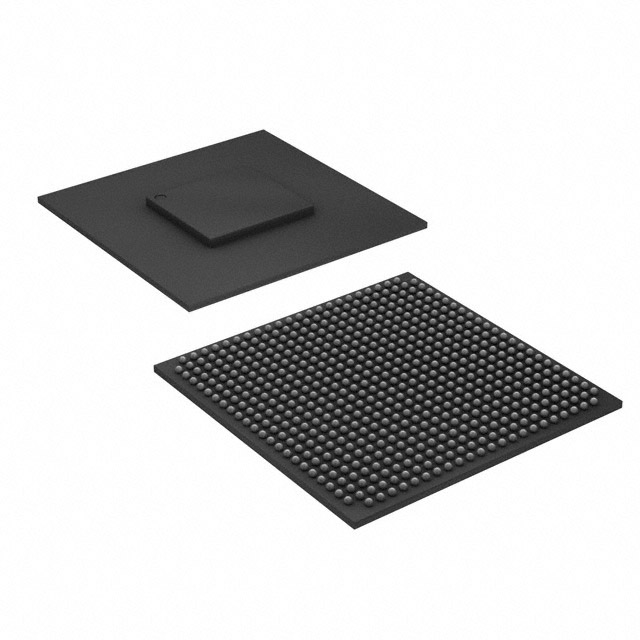

The Intel EP2AGX45DF25C6N is an FPGA from the Arria II GX series. It features 42959 logic elements and 3.517440M bits of RAM.

✓ Total Stock: 2,604 pcs

$ Price Range: $0.50

EP2AGX45DF25C6N Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,604 pcs On Request	2604 pcs	On Request	1	On Request	On Request	1831+	On Request	On Request

EP2AGX45DF25C6N Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Altera
Mounting Type	Surface Mount
Package / Case	572-BGA, FCBGA
Storage Temperature	°C ~ °C
Supply Voltage	0.87V ~ 0.93V
Tape & Reel	No

View Similar Products (0)

EP2AGX45DF25C6N Description

Short technical summary and product information.

The EP2AGX45DF25C6N is a Field Programmable Gate Array (FPGA) manufactured by Intel, part of the Arria II GX series. This component offers 42959 logic elements/cells and 1805 LABs/CLBs, providing significant processing capabilities.

With a total of 3,517,440 RAM bits, the EP2AGX45DF25C6N is suitable for complex data manipulation and storage tasks. It supports 252 input/output (I/O) pins, allowing for extensive connectivity in system designs. The device operates within a supply voltage range of 0.87V to 0.93V.

This FPGA is designed for surface mounting and comes in a 572-BGA, FCBGA package. It operates within an ambient temperature range of 0°C to 85°C (TJ). The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 (Unlimited), indicating its suitability for various environmental conditions.

Key specifications include 42959 logic elements, 3517440 RAM bits, and 252 I/O. The operating temperature is 0°C to 85°C, and the supply voltage is between 0.87V and 0.93V. The package type is 572-BGA, FCBGA, and it is surface-mounted.

EP2AGX45DF25C6N Quick Information

Product Type: FPGA

Series: Arria II GX

Canonical Name: EP2AGX45DF25C6N FPGA

Subcategory: Field Programmable Gate Array

EP2AGX45DF25C6N Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

EP2AGX45DF25C6N Estimated Pricing

Qty	Low	High
1+	$0.50	$0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

EP2AGX45DF25C6N Features

42959 logic elements/cells available.
3517440 total RAM bits for data storage.
252 input/output pins for connectivity.
0.87V to 0.93V supply voltage range.
0°C to 85°C operating temperature.

EP2AGX45DF25C6N Applications

Suitable for complex digital logic.
Ideal for embedded system designs.
Used in high-performance computing.
Applicable in signal processing tasks.

EP2AGX45DF25C6N FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of logic elements in the EP2AGX45DF25C6N FPGA?

The EP2AGX45DF25C6N FPGA has 42959 logic elements/cells.

How much RAM is available on the EP2AGX45DF25C6N FPGA?

The EP2AGX45DF25C6N FPGA has a total of 3,517,440 RAM bits.

What is the operating temperature range for the EP2AGX45DF25C6N FPGA?

The operating temperature range for the EP2AGX45DF25C6N FPGA is 0°C to 85°C (TJ).

What is the supply voltage for the EP2AGX45DF25C6N FPGA?

The supply voltage for the EP2AGX45DF25C6N FPGA is between 0.87V and 0.93V.

What package type is the EP2AGX45DF25C6N FPGA supplied in?

The EP2AGX45DF25C6N FPGA is supplied in a 572-BGA, FCBGA package.

What is the RoHS status of the EP2AGX45DF25C6N FPGA?

The EP2AGX45DF25C6N FPGA is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the EP2AGX45DF25C6N FPGA?

The Moisture Sensitivity Level (MSL) for the EP2AGX45DF25C6N FPGA is 1 (Unlimited).
