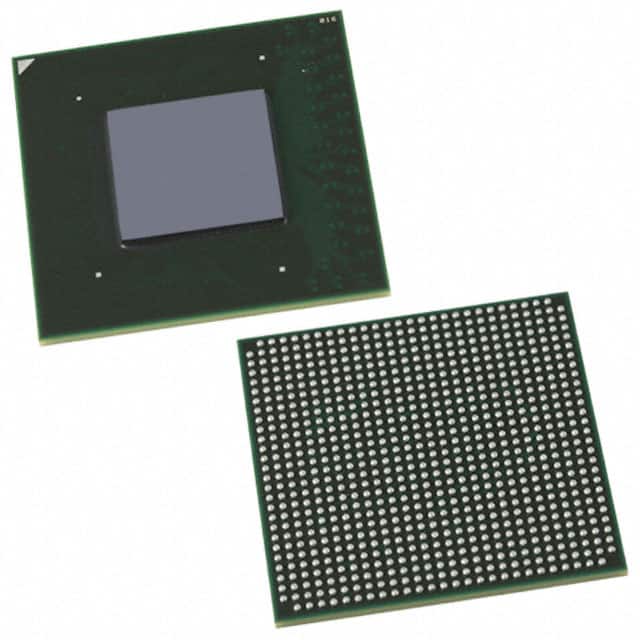

EP2AGX125EF29I3N The Intel EP2AGX125EF29I3N is an FPGA with 372 I/O pins and 12,038,144 RAM bits. It features a surface mount package and operates between -40°C and 100°C (TJ).
Mfr Part #:

EP2AGX125EF29I3N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EP2AGX125EF29I3N is an FPGA with 372 I/O pins and 12,038,144 RAM bits. It features a surface mount package and operates between -40°C and 100°C (TJ).
✓ Total Stock: 2,832 pcs

EP2AGX125EF29I3N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,832 pcs
On Request
2832 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP2AGX125EF29I3N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of I/O
Number of LABs
Number of LABs/CLBs
Number of Logic Elements
Number of Logic Elements/Cells
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage
Voltage Supply
View Similar Products (0)

EP2AGX125EF29I3N Description

Short technical summary and product information.

The Intel EP2AGX125EF29I3N is a Field Programmable Gate Array (FPGA) designed for embedded applications. It offers a substantial 12,038,144 RAM bits and 372 I/O pins, making it suitable for complex digital logic designs.



This FPGA operates within a temperature range of -40°C to 100°C (TJ), ensuring reliability in various environmental conditions. The device is packaged in a 780-FBGA (29x29) format and is designed for surface mounting.



Key electrical characteristics include a supply voltage range of 0.87V to 0.93V. The FPGA is built with 244,188 logic elements and 10,260 logic array blocks (LABs), providing significant processing power for demanding tasks.



This component is part of the Arria II GX series, known for its performance and flexibility in high-speed applications. Its robust specifications make it a valuable choice for system designers requiring high-density logic integration.

EP2AGX125EF29I3N Quick Information

Product Type: FPGA
Series: Arria II GX
Canonical Name: Intel EP2AGX125EF29I3N FPGA
Subcategory: Field Programmable Gate Array

EP2AGX125EF29I3N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP2AGX125EF29I3N Features

  • 372 I/O pins for flexible interfacing.
  • 12,038,144 RAM bits for data storage.
  • Operates from -40°C to 100°C (TJ).
  • Surface mountable 780-FBGA (29x29) package.
  • 244,188 logic elements for complex designs.

EP2AGX125EF29I3N Applications

  • Suitable for high-density logic integration.
  • Ideal for embedded system applications.
  • Designed for Arria II GX series performance.
  • Supports complex digital logic designs.

EP2AGX125EF29I3N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the EP2AGX125EF29I3N FPGA?

The operating voltage is between 0.87V and 0.93V.

How many I/O pins does the EP2AGX125EF29I3N FPGA have?

It has 372 I/O pins.

What is the operating temperature range for this FPGA?

The operating temperature range is -40°C to 100°C (TJ).

What package type is the EP2AGX125EF29I3N FPGA supplied in?

It is supplied in a 780-FBGA (29x29) package, specifically a 780-BBGA, FCBGA case, and is tray packaged.

How many logic elements are available on the EP2AGX125EF29I3N FPGA?

The FPGA features 244,188 logic elements.

What is the total RAM bit count for the EP2AGX125EF29I3N FPGA?

It has a total of 12,038,144 RAM bits.
