| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage Rating |

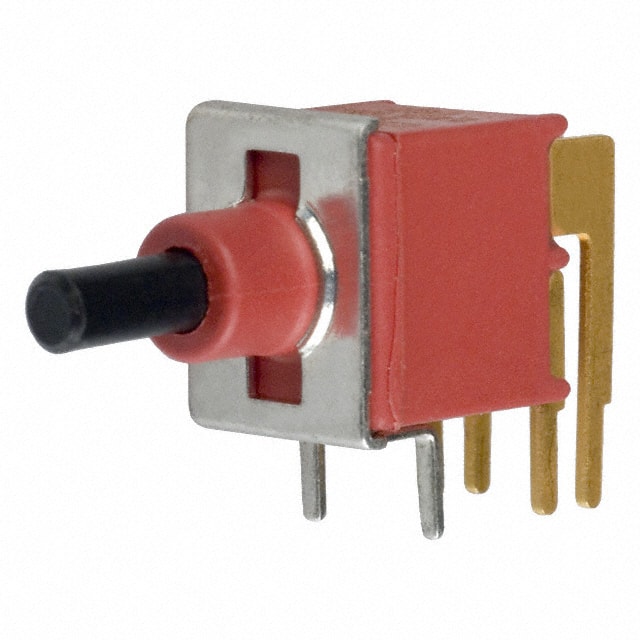

The C&K Components EP21SD1ABE is a sealed tiny pushbutton switch from the EP Series, suitable for telecommunications and networking equipment, computers, peripherals, and instrumentation.
This switch features a DPST-NO (Double Pole Single Throw Normally Open) circuit with a contact rating of 0.4 VA maximum at 20 V AC or DC. It offers an electrical life of 60,000 make-and-break cycles at full load and has a contact resistance below 20mΩ typical initial. Insulation resistance is a minimum of 10⁹ Ω, and dielectric strength is 1000 Vrms minimum.
The operating temperature range is -30°C to 85°C. The switch is sealed against solder and cleaning processes, providing protection against harmful dust deposit and temporary immersion with an IP57 ingress protection rating. The case and bushing are made from high-temperature, flame-retardant material, and the plunger includes an internal o-ring seal.
Designed for through-hole mounting with a right-angle termination style, the EP21SD1ABE utilizes PC pins for connection. It has a black actuator with no marking and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.4 VA maximum at 20 V AC or DC.
The operating temperature range is -30°C to 85°C.
The ingress protection rating is IP57, providing protection against dust and temporary immersion.
It uses through-hole mounting with a right-angle termination style via PC pins.
The electrical life is 60,000 make-and-break cycles at full load for EP11 and EP21 models.
