EP20K200EFC484-3

The Altera EP20K200EFC484-3 is a high-performance Field Programmable Gate Array (FPGA) belonging to the APEX-20K® series. This device is designed for embedded and custom digital logic applications, offering a robust solution for demanding processing tasks, flexible hardware acceleration, and system prototyping.

Key specifications include 8320 logic elements (LEs) and 832 Logic Array Blocks (LABs)/Configurable Logic Blocks (CLBs). It provides 136 dedicated I/O pins for interfacing with external circuitry and boasts a gate count of 526,000 system gates. The device also incorporates 106,496 bits of embedded RAM, which can be utilized without impacting available logic resources.

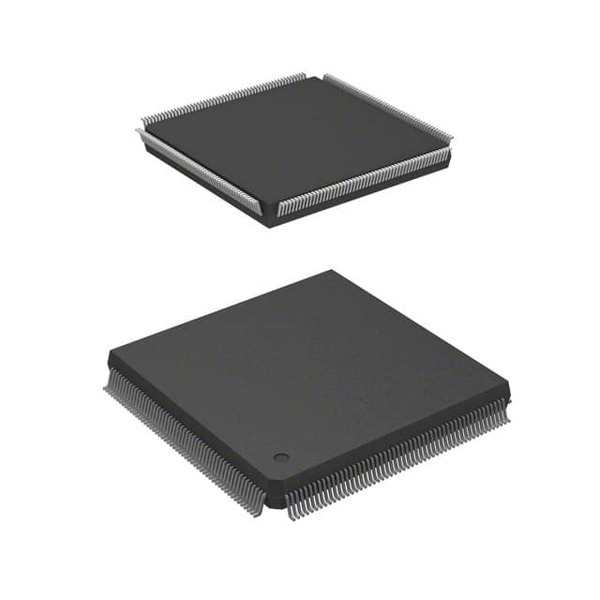

Operating within a supply voltage range of 1.71V to 1.89V, the EP20K200EFC484-3 is suitable for low-power applications. It is housed in a 208-pin BFQFP surface-mount package, measuring 28mm x 28mm, ensuring stable placement on PCBs. The operating temperature range is from 0°C to 85°C (TJ).

This FPGA architecture is fully reconfigurable, utilizing logic array blocks and embedded memory blocks. Its design is suitable for applications requiring flexible digital logic implementation and high-density integration.
