EP1S30F780I6 The Altera EP1S30F780I6 is an FPGA with 32470 logic elements and 597 I/O pins. It operates at a voltage range of 1.425V to 1.575V.
Mfr Part #:

EP1S30F780I6

Available from 1 distributors
Mfr Name: Altera
Altera
The Altera EP1S30F780I6 is an FPGA with 32470 logic elements and 597 I/O pins. It operates at a voltage range of 1.425V to 1.575V.
✓ Total Stock: 12,000 pcs

EP1S30F780I6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request 0631+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP1S30F780I6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of I/O
Number of LABs/CLBs
Number of Logic Elements/Cells
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage
Voltage Supply
View Similar Products (0)

EP1S30F780I6 Description

Short technical summary and product information.

The Altera EP1S30F780I6 is an embedded FPGA (Field Programmable Gate Array) designed for various electronic applications. It features 32470 logic elements and 3247 logic array blocks (LABs) or configurable logic blocks (CLBs), providing significant processing capability.



This FPGA offers 597 input/output (I/O) pins, allowing for extensive connectivity. It operates within a voltage supply range of 1.425V to 1.575V and has a total of 3,317,184 RAM bits. The device is specified for an operating temperature range of -40°C to 100°C (TJ).

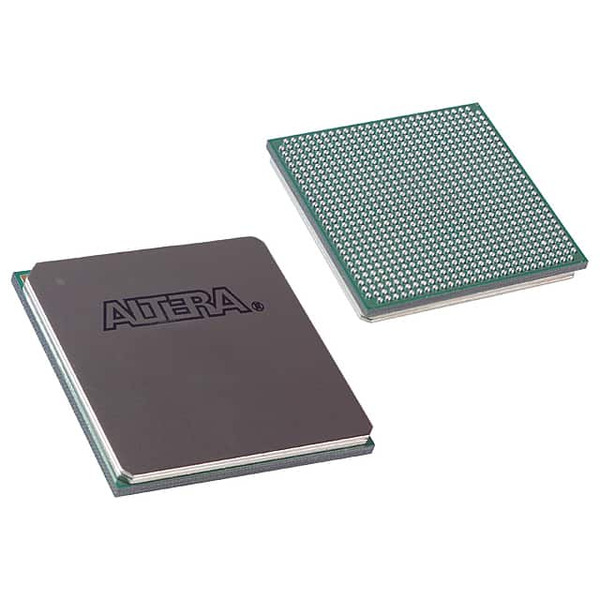

The EP1S30F780I6 comes in a 780-FBGA (29x29) package, with the specific package/case being 780-BBGA, FCBGA. It is designed for surface mount installation and is supplied in tray packaging. The component is RoHS Compliant.



This FPGA is suitable for applications requiring flexible logic implementation and high I/O density. Its operating temperature range makes it suitable for demanding environments.

EP1S30F780I6 Quick Information

Product Type: FPGA
Series: Stratix®
Canonical Name: Altera EP1S30F780I6 FPGA
Subcategory: Embedded FPGA

EP1S30F780I6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP1S30F780I6 Features

  • 32470 logic elements/cells available.
  • 597 input/output pins.
  • Operates at 1.425V to 1.575V.
  • Temperature range -40°C to 100°C.
  • 780-FBGA (29x29) package.

EP1S30F780I6 Applications

  • Suitable for FPGA-based digital signal processing.
  • Used in high-performance computing applications.
  • Ideal for embedded control systems.
  • Applicable in telecommunications infrastructure.
  • Suitable for aerospace and defense electronics.

EP1S30F780I6 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the EP1S30F780I6?

The operating voltage is 1.425V to 1.575V.

How many logic elements does the EP1S30F780I6 have?

It has 32470 logic elements/cells.

What is the operating temperature range for this FPGA?

The operating temperature is -40°C to 100°C (TJ).

What package type is the EP1S30F780I6 supplied in?

It is supplied in a 780-FBGA (29x29) package, specifically 780-BBGA, FCBGA, in tray packaging.

How many I/O pins does the EP1S30F780I6 feature?

It features 597 I/O pins.
