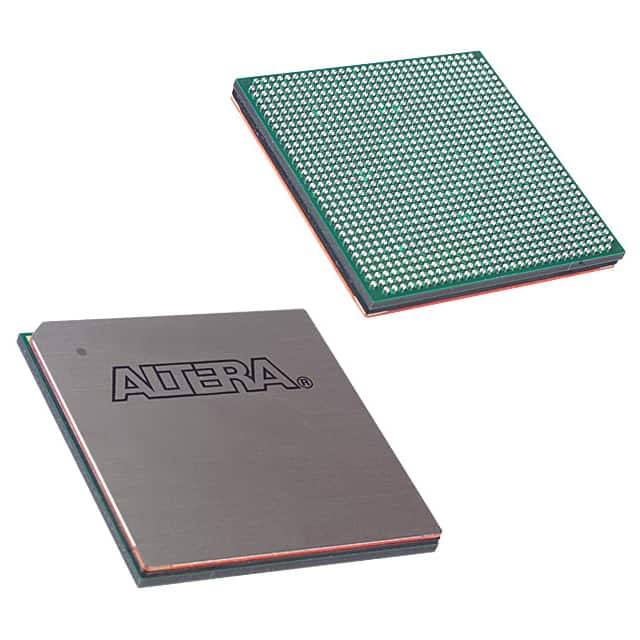

EP1S30F1020I6N The Intel EP1S30F1020I6N is a high-performance FPGA from the Stratix series. It features 32,470 logic elements and 726 I/O pins.
Mfr Part #:

EP1S30F1020I6N

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EP1S30F1020I6N is a high-performance FPGA from the Stratix series. It features 32,470 logic elements and 726 I/O pins.
✓ Total Stock: 6,500 pcs

EP1S30F1020I6N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,500 pcs
On Request
6500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP1S30F1020I6N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Total RAM Bits
Voltage
View Similar Products (0)

EP1S30F1020I6N Description

Short technical summary and product information.

The Intel EP1S30F1020I6N is a Field Programmable Gate Array (FPGA) belonging to Intel's Stratix series. Designed for complex digital systems, this IC offers robust computational capabilities with 32,470 logic elements/cells and 3,247 Logic Array Blocks (LABs). It provides substantial memory with a total RAM capacity of 3,317,184 bits.



Connectivity is extensive with 726 I/O pins, enabling interfacing with various peripherals. The device operates within a supply voltage range of 1.425V to 1.575V and has an operating temperature range of -40°C to 100°C (TJ). It is packaged in a 1020FBGA format, suitable for surface mount applications.



This FPGA is classified under ECCN 3A001A2A and is REACH unaffected. Despite its obsolescence status, it remains a reliable choice for legacy systems and specific applications requiring its unique features. Development is supported by Intel's Quartus II Software and other tools.

EP1S30F1020I6N Quick Information

Product Type: FPGA
Series: Stratix
Canonical Name: Intel EP1S30F1020I6N FPGA
Subcategory: Field Programmable Gate Array

EP1S30F1020I6N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP1S30F1020I6N Features

  • 32,470 logic elements for complex designs.
  • 726 I/O pins for extensive connectivity.
  • 3,317,184 bits of total RAM.
  • Surface mountable 1020FBGA package.
  • Operates from 1.425V to 1.575V.

EP1S30F1020I6N Applications

  • Ideal for telecommunications infrastructure.
  • Suitable for military and aerospace systems.
  • Used in industrial automation control.
  • Applicable for advanced medical equipment.
  • Supports consumer electronics multimedia.

EP1S30F1020I6N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the number of logic elements in the EP1S30F1020I6N FPGA?

The EP1S30F1020I6N FPGA has 32,470 logic elements.

How many I/O pins does the EP1S30F1020I6N have?

The EP1S30F1020I6N has 726 I/O pins.

What is the operating voltage range for the EP1S30F1020I6N?

The operating voltage range for the EP1S30F1020I6N is 1.425V to 1.575V.

What package type is the EP1S30F1020I6N supplied in?

The EP1S30F1020I6N is supplied in a 1020FBGA package.

What is the operating temperature range for the EP1S30F1020I6N?

The operating temperature range for the EP1S30F1020I6N is -40°C to 100°C (TJ).

What is the ECCN classification for the EP1S30F1020I6N?

The ECCN classification for the EP1S30F1020I6N is 3A001A2A.
