| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,700 pcs
|
3700 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request | |
|
2,001 pcs
|
2001 pcs | On Request | 1 | On Request | On Request | 2017+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Gates | |
| Number of I/O | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage |

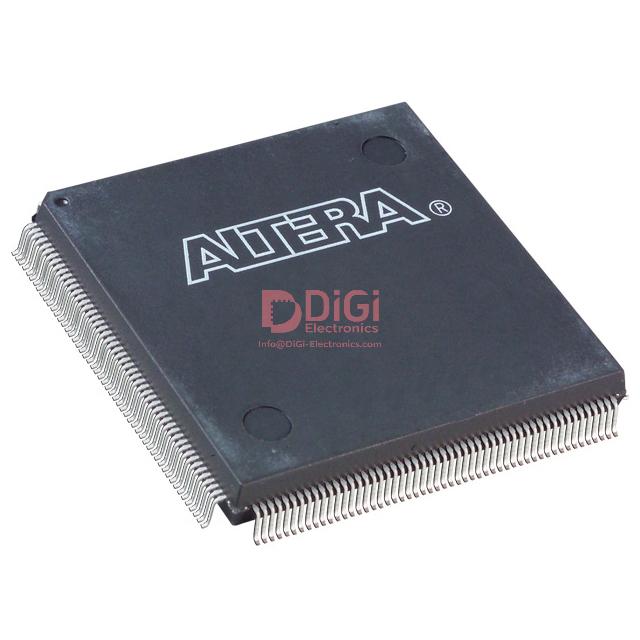

The Altera EP1K100QC208-3N is a Field Programmable Gate Array (FPGA) from the ACEX-1K family. This device offers a high density of 4992 logic elements and 49152 RAM bits, making it suitable for complex system-on-a-programmable-chip (SOPC) integrations.
Key system-level features include MultiVolt I/O pins that can interface with 2.5-V, 3.3-V, or 5.0-V devices, providing design flexibility. The device operates with a 2.5-V internal supply voltage and is designed for cost-efficient, high-volume applications. It also features bidirectional I/O performance up to 250 MHz and is compliant with the PCI Local Bus Specification Revision 2.2 for 3.3-V operation at 33 MHz or 66 MHz, and for 5.0-V operation with -1 speed grade devices.
Packaged in a 208-BFQFP, the EP1K100QC208-3N is designed for surface mounting. It operates within a temperature range of 0°C to 70°C. The device includes built-in Joint Test Action Group (JTAG) boundary-scan test circuitry compliant with IEEE Std. 1149.1-1990.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The internal supply voltage is 2.5V, and the MultiVolt I/O pins can drive or be driven by 2.5-V, 3.3-V, or 5.0-V devices.
The operating temperature range is 0°C to 70°C.
The device is supplied in a 208-BFQFP package.
Yes, it is fully compliant with the PCI Local Bus Specification Revision 2.2 for 3.3-V operation at 33 MHz or 66 MHz, and for 5.0-V operation with -1 speed grade devices.
