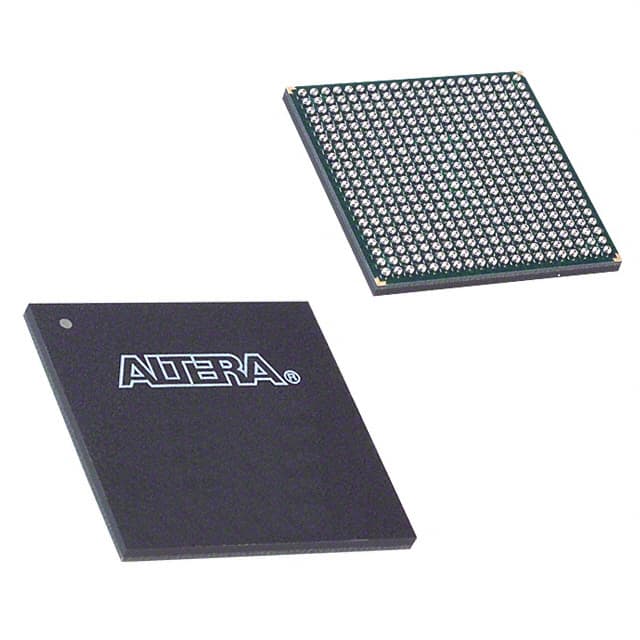

EP1C4F400C8 The Intel EP1C4F400C8 is a Cyclone series FPGA featuring 4000 logic elements and 301 I/O pins. It is packaged in a 400-FBGA and designed for surface mounting.
Mfr Part #:

EP1C4F400C8

Available from 2 distributors
Mfr Name: Intel
Intel
The Intel EP1C4F400C8 is a Cyclone series FPGA featuring 4000 logic elements and 301 I/O pins. It is packaged in a 400-FBGA and designed for surface mounting.
✓ Total Stock: 16,757 pcs

EP1C4F400C8 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
16,756 pcs
On Request
16756 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP1C4F400C8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Mounting Type
Number of I
Number of I/O
Number of LABs
Number of Logic Elements
Operating Temperature
Supplier Device Package
Supplier Package
Supply Voltage
Total RAM Bits
Voltage
View Similar Products (0)

EP1C4F400C8 Description

Short technical summary and product information.

The Intel EP1C4F400C8 is an integrated circuit Field Programmable Gate Array (FPGA) from the Cyclone series. It offers 400 Logic Array Blocks (LABs) and 4000 logic elements, providing substantial programmable logic resources. This FPGA includes 78336 total RAM bits for data processing and storage.



With 301 input/output (I/O) pins, the EP1C4F400C8 supports extensive connectivity options. It operates within a temperature range of 0°C to 85°C and requires a supply voltage between 1.425V and 1.575V. The component is supplied in a 400-FBGA (21x21 MM) package, suitable for surface mounting.



This FPGA is classified under ECCN 3A991D and HTSUS 8542.39.0001. Although marked as obsolete, it remains a valuable component for specific legacy systems and applications requiring its unique combination of features and performance.



Development for the EP1C4F400C8 can be supported by Intel's Quartus II Software and various IP cores, simulation tools, and hardware development kits.

EP1C4F400C8 Quick Information

Product Type: FPGA
Series: Cyclone
Canonical Name: Intel EP1C4F400C8 FPGA
Subcategory: FPGA

EP1C4F400C8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP1C4F400C8 Features

  • 400 Logic Array Blocks (LABs) available.
  • 4000 logic elements for programmability.
  • 78336 total RAM bits provided.
  • 301 input/output (I/O) pins.
  • Operates at 0°C to 85°C (TJ).

EP1C4F400C8 Applications

  • Ideal for telecommunications applications.
  • Suitable for industrial automation systems.
  • Used in consumer electronics devices.
  • Enables medical equipment functionality.
  • Supports specific legacy systems.

EP1C4F400C8 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the number of logic elements in the EP1C4F400C8 FPGA?

The EP1C4F400C8 FPGA has 4000 logic elements.

How many I/O pins does the EP1C4F400C8 FPGA have?

The EP1C4F400C8 FPGA features 301 I/O pins.

What is the operating voltage range for the EP1C4F400C8 FPGA?

The operating voltage range for the EP1C4F400C8 FPGA is 1.425V to 1.575V.

What package type is the EP1C4F400C8 FPGA supplied in?

The EP1C4F400C8 FPGA is supplied in a 400-FBGA (21x21 MM) package.

What is the operating temperature range for the EP1C4F400C8 FPGA?

The operating temperature range for the EP1C4F400C8 FPGA is 0°C to 85°C (TJ).
