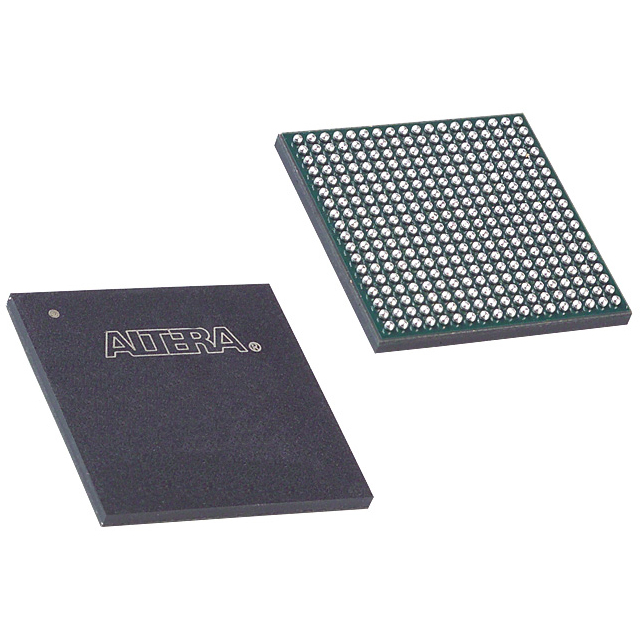

EP1C20F324C7 The Intel EP1C20F324C7 is a Cyclone series FPGA offering 20060 logic elements and 233 I/Os. It operates at speeds up to 320MHz and is housed in a 324FBGA package.
Mfr Part #:

EP1C20F324C7

Available from 2 distributors
Mfr Name: Altera
Altera
The Intel EP1C20F324C7 is a Cyclone series FPGA offering 20060 logic elements and 233 I/Os. It operates at speeds up to 320MHz and is housed in a 324FBGA package.
✓ Total Stock: 1,180 pcs
$ Price Range: $22.15

EP1C20F324C7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
1,100 pcs
On Request
1100 pcs On Request 1 On Request On Request 04+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP1C20F324C7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Clock Frequency
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Pitch
Supply Voltage
View Similar Products (0)

EP1C20F324C7 Description

Short technical summary and product information.

The Intel EP1C20F324C7 is an IC Field Programmable Gate Array (FPGA) from the Cyclone series, designed for applications requiring high flexibility and performance. This FPGA features a total of 20,060 logic elements and 2,006 Logic Array Blocks (LABs) or Configurable Logic Blocks (CLBs), providing substantial capacity for complex digital designs.



With 233 I/Os, the EP1C20F324C7 offers robust connectivity options, making it suitable for applications requiring multiple interfaces. It includes 294,912 RAM bits for efficient data storage and processing. The device operates at clock speeds up to 320MHz.



The FPGA is designed for a wide operating temperature range of 0°C to 85°C (TJ) and a flexible supply voltage range of 1.425V to 1.575V, ensuring reliability in various environmental conditions. It is packaged in a 324FBGA format with a pitch of 1.0 mm, measuring 19 x 19 mm, making it compatible with surface mount applications.



Applications for the EP1C20F324C7 include telecommunications, consumer electronics, industrial control, and medical equipment. Intel provides development tools such as Quartus Prime Software and Intel FPGA IP to support the design process.

EP1C20F324C7 Quick Information

Product Type: FPGA
Series: Cyclone
Canonical Name: Intel Cyclone EP1C20F324C7 FPGA
Subcategory: FPGA

EP1C20F324C7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP1C20F324C7 Estimated Pricing

Qty Low High
1+ $22.15 $22.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

EP1C20F324C7 Features

  • 20060 logic elements and 2006 LABs/CLBs
  • 233 I/O pins for extensive connectivity
  • 294,912 RAM bits for data storage
  • 320MHz maximum clock frequency
  • 0°C to 85°C operating temperature range

EP1C20F324C7 Applications

  • Ideal for telecommunications equipment
  • Suitable for consumer electronics
  • Used in industrial control systems
  • Applicable in medical equipment

EP1C20F324C7 FAQs

7 frequently asked questions generated from this part’s specifications.
How many logic elements does the EP1C20F324C7 have?

The EP1C20F324C7 has 20,060 logic elements.

What is the operating voltage range of the EP1C20F324C7?

The supply voltage range is 1.425V to 1.575V.

What is the maximum clock frequency of the EP1C20F324C7?

The maximum clock frequency is 320 MHz.

How many I/O pins does the EP1C20F324C7 have?

The EP1C20F324C7 has 233 I/O pins.

What package does the EP1C20F324C7 come in?

It comes in a 324-ball FBGA package measuring 19 x 19 mm with a 1.0 mm pitch.

What is the operating temperature range of the EP1C20F324C7?

The operating temperature range is 0°C to 85°C (junction temperature).

How much RAM does the EP1C20F324C7 have?

It has 294,912 RAM bits.
