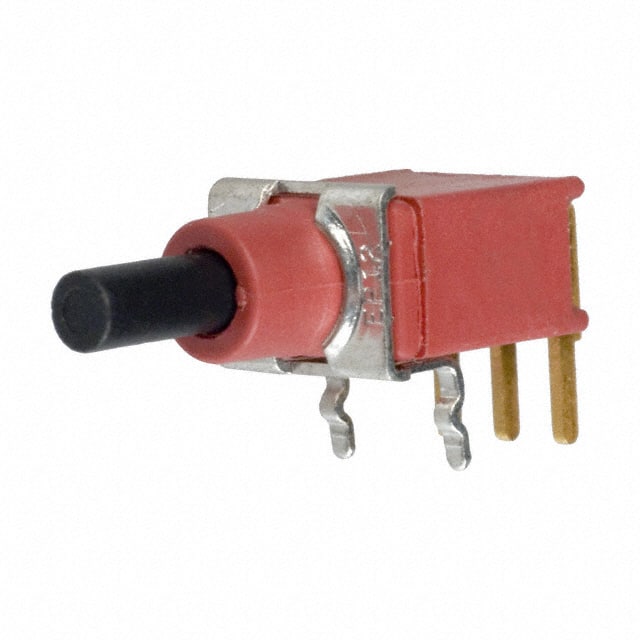

EP12SD1ABE The C&K Components EP12SD1ABE is a sealed SPDT pushbutton switch designed for telecommunications and networking applications. It features a 0.4VA contact rating and 20V voltage rating.
Mfr Part #:

EP12SD1ABE

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components EP12SD1ABE is a sealed SPDT pushbutton switch designed for telecommunications and networking applications. It features a 0.4VA contact rating and 20V voltage rating.
✓ Total Stock: 270 pcs
$ Price Range: $0.75

EP12SD1ABE Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
249 pcs
On Request
249 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP12SD1ABE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Contact Resistance
Current Rating (Amps)
Features
Ingress Protection
Insulation Resistance
Mounting Type
Operating Temperature
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
View Similar Products (0)

EP12SD1ABE Description

Short technical summary and product information.

The C&K Components EP Series EP12SD1ABE is a sealed tiny pushbutton switch suitable for demanding environments. It offers a contact rating of 0.4 VA at 20V AC/DC and a single-pole double-throw (SPDT) circuit.



Designed for reliability, this switch is sealed against solder and cleaning processes, achieving an IP57 ingress protection rating, which signifies protection against harmful dust and temporary immersion.



The EP12SD1ABE features a through-hole, right-angle mounting type with PC pin termination. Its operating temperature range is -30°C to 85°C. The switch utilizes a round plunger actuator and is constructed with high-temperature materials for durability.



Applications include telecommunications, networking equipment, computers, peripherals, and instrumentation. The switch is available in tape and reel packaging for surface mount models, though this specific model is through-hole.

EP12SD1ABE Quick Information

Product Type: Pushbutton Switch
Series: EP Series
Canonical Name: C&K Components EP12SD1ABE SPDT Pushbutton Switch
Subcategory: Sealed Tiny Pushbutton Switches

EP12SD1ABE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP12SD1ABE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

EP12SD1ABE Features

  • Sealed against solder and cleaning processes.
  • IP57 ingress protection rating.
  • SPDT circuit configuration.
  • Through-hole, right-angle mounting.
  • 0.4 VA contact rating at 20V.

EP12SD1ABE Applications

  • Telecommunications equipment.
  • Networking industry applications.
  • Computers and peripherals.
  • Instrumentation and controls.

EP12SD1ABE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact rating for the EP12SD1ABE switch?

The contact rating is 0.4 VA maximum at 20 V AC or DC maximum.

What is the electrical life of the EP12SD1ABE switch?

The EP12 models have an electrical life of 30,000 cycles at full load.

What is the operating temperature range for this switch?

The operating temperature range is -30°C to 85°C.

What is the ingress protection rating of the EP12SD1ABE switch?

The switch has an IP57 rating, providing protection against harmful dust deposit and temporary immersion.

What type of mounting does the EP12SD1ABE switch use?

It uses a through-hole, right-angle mounting type.

What is the termination style for the EP12SD1ABE switch?

The termination style is PC Pin.
