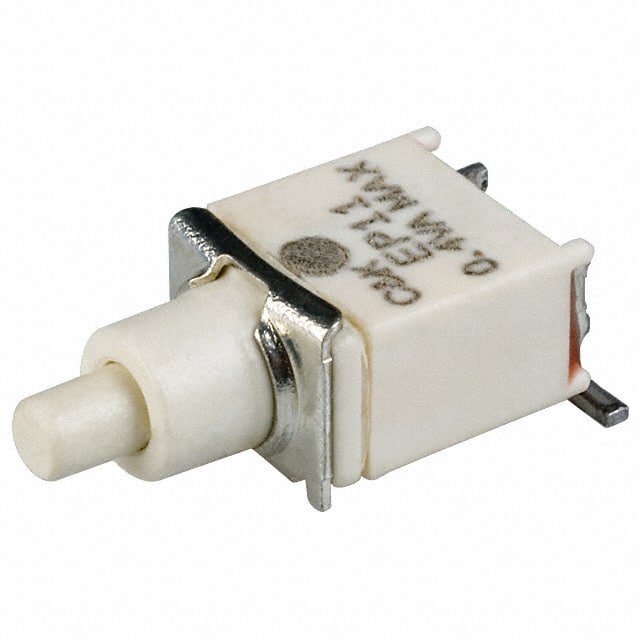

EP11SD1SAKE The C&K Components EP11SD1SAKE is a standard pushbutton switch with a SPST-NO circuit. It offers a contact rating of 0.4VA at 20V and features IP57 ingress protection.
Mfr Part #:

EP11SD1SAKE

Available from 3 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components EP11SD1SAKE is a standard pushbutton switch with a SPST-NO circuit. It offers a contact rating of 0.4VA at 20V and features IP57 ingress protection.
✓ Total Stock: 1,436 pcs
$ Price Range: $0.75

EP11SD1SAKE Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
516 pcs
On Request
516 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
320 pcs
On Request
320 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP11SD1SAKE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Contact Resistance
Current Rating (Amps)
Features
Ingress Protection
Insulation Resistance
Lead Style
Mounting Type
Operating Temperature
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
View Similar Products (0)

EP11SD1SAKE Description

Short technical summary and product information.

The C&K Components EP11SD1SAKE is a standard pushbutton switch designed for various applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration and a momentary (Off-Mom) switch function.



This switch has a contact rating of 0.4VA maximum at 20V AC or DC. It operates within a temperature range of -30°C to 85°C and provides a high degree of protection with an IP57 rating, safeguarding against dust and temporary immersion.



The EP11SD1SAKE is designed for surface mounting with a right-angle orientation and utilizes gull wing termination style. The case and bushing are constructed from flame-retardant, heat-stabilized glass-filled nylon, while the plunger is made of thermoplastic polyester or glass-filled nylon. Contacts and terminals are copper alloy with gold plating over nickel.



Typical applications include telecommunications, networking equipment, computers, peripherals, instrumentation, and controls where a sealed, reliable pushbutton switch is required.

EP11SD1SAKE Quick Information

Product Type: Pushbutton Switch
Series: EP
Canonical Name: C&K Components EP11SD1SAKE SPST-NO Pushbutton Switch
Subcategory: Standard

EP11SD1SAKE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP11SD1SAKE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

EP11SD1SAKE Features

  • Sealed against solder and cleaning processes.
  • SPST-NO, Off-Mom switch function.
  • 0.4VA maximum contact rating at 20V.
  • IP57 ingress protection rating.
  • Surface mount, right angle mounting.

EP11SD1SAKE Applications

  • Used in telecommunications equipment.
  • Suitable for networking devices.
  • Applied in computer peripherals.
  • Incorporated into instrumentation.
  • Used in control systems.

EP11SD1SAKE FAQs

9 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K EP11SD1SAKE pushbutton switch?

The contact rating is 0.4 VA maximum at 20 V AC or DC.

What is the operating voltage for this pushbutton switch?

The operating voltage is 20 V.

What is the electrical life of the EP11SD1SAKE switch?

The electrical life is 60,000 make-and-break cycles at full load.

What is the typical initial contact resistance?

The typical initial contact resistance is below 20 mΩ.

What is the insulation resistance of the C&K EP11SD1SAKE?

The insulation resistance is a minimum of 1 GΩ.

What is the dielectric strength of this switch?

The dielectric strength is a minimum of 1000 Vrms.

What is the operating temperature range for this pushbutton switch?

The operating temperature range is -30°C to 85°C.

What is the degree of protection against dust and water?

The degree of protection is IP57.

What is the mounting type and termination style?

It is a surface mount, right angle switch with gull wing termination.
